Many imaging experiments require the ability to move to multiple locations in a chamber or in a tissue culture dish. Large motorized stages accomplish this, but generally make the microscope into a single-use, motorized imaging station. The form factor of motorized stages usually precludes positioning other equipment such as manipulators at the same microscope.

Now, a simple attachment converts a standard Sutter MP-285 manipulator into the 3-Dimensional Motorized Stage. The 3DMS manipulator and stage attachment can be either mounted on an MT-75 gantry stand next to an upright microscope, or on an MD series stand attached to the body of an inverted microscope. The compact size allows manipulators and other equipment to be used simultaneously.

Refocusing is often required at the different X-Y locations when images are automatically acquired. Normally this requires a motorized focus drive to be added to the microscope. Because the 3DMS is a three-axis manipulator, focusing (vertical movement of the stage) is already built in. Surprisingly, this relatively small package still allows for 25 mm of movement in X, Y, and Z axes with sub-micron precision.

A variety of stage brackets are available to fit the needs of your experiment. Please consult our technical staff for further information.

FEATURES

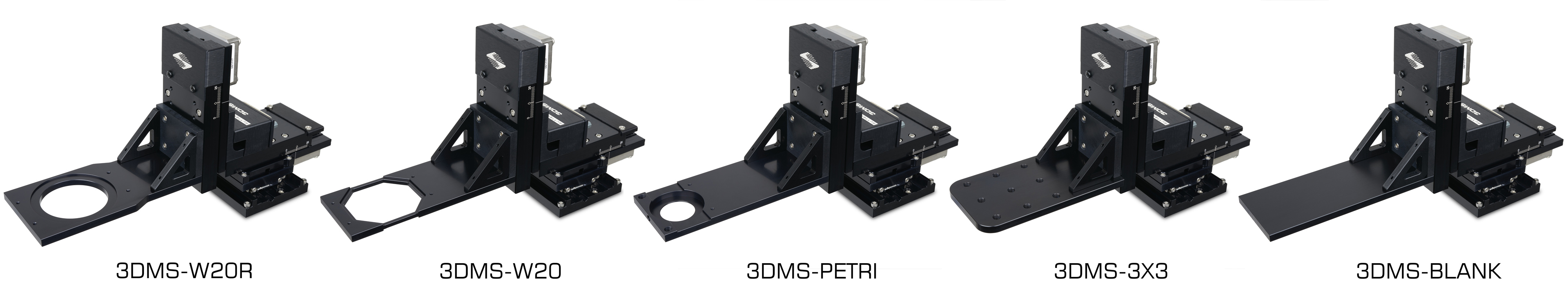

NEW Variety of stage bracket options provide increased flexibility
Highly stable for experiments intolerant of pipette drift
Submicron resolution and integrated coarse positioning
1 inch of motorized travel on all three axes
Adjustable speed and resolution allows optimization for your experimental setup
When used with MP-285 controller, has programmable robotics for complex motion sequences
Continuous display (in microns) of axes positions
Switch between continuous or single step movement
Absolute and relative origins
Remote computer control
Compact design easily adaptable to your setup

TECHNICAL SPECIFICATIONS

Travel
1 in | 25 mm on all three axes

Resolution (with MP-285 controller)
Low: 0.2 um/step
High: 0.04 um/step

Maximum Speed
2.9 mm/sec

Long Term Stability
< 10 nm/hour at 24 deg C

Drive Mechanism
Precision worm gear capstan drive

Serial Interface
RS-232, 9600 baud (1 start bit, 8 data bits, 1 stop bit)

Dimensions
Mechanical
4.5 in x 6 in x 6.25 in | 11 cm x 15 cm x 16 cm
Controller
4 in x 16 in x 12.25 in | 10 cm x 40.5 cm x 31 cm

Weight
Manipulator
3.85 lb | 1.7 kg
Controller
10 lb 11 oz | 4.5 kg

Electrical
115/230 Volts
50/60 Hertz power line

RoHS Compliant

3DMS-200 CE Certificate
3DMS-285 CE Certificate

US PRICES > 3DMS
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number	Description	Price

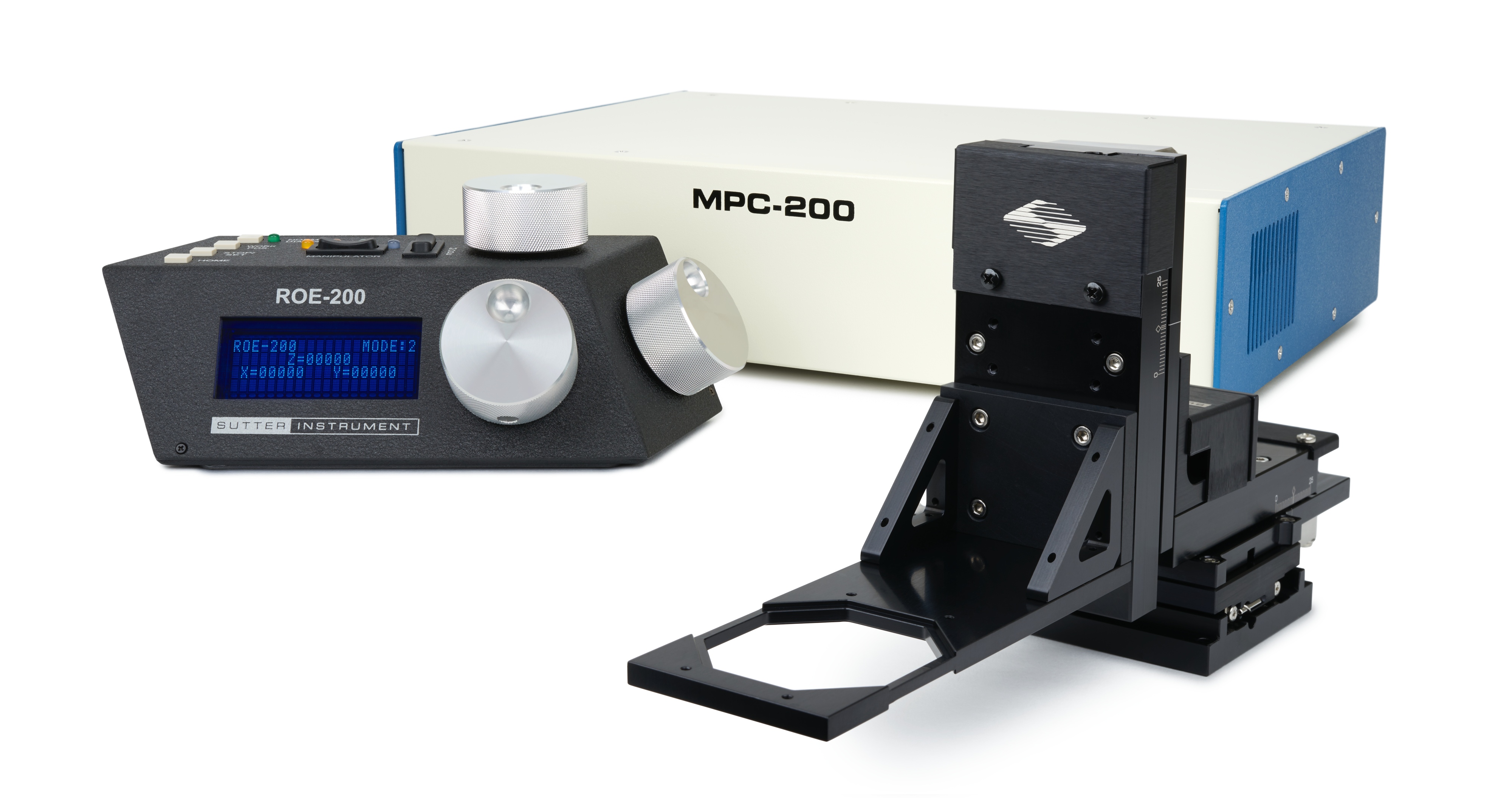

3DMS-100^*	TRIO MPC-100 controller, 3-axis motorized stage for microscope, stage bracket, connecting cables, power cord and manual	$ 10,829
3DMS-285^*	Rack mount MP-285 controller, 3-axis motorized stage for microscope, stage bracket and 285ROE user interface, connecting cables, power cord and manual	$ 11,272
3DMS-200^*	Rack mount MP-200 controller, 3-axis motorized stage for microscope, stage bracket and ROE-200 user interface, connecting cables, power cord and manual	$ 12,074

^*When ordering the 3DMS, a stage bracket must be specified. Please list the stage bracket as a separate item at no cost. Additional stage brackets can be purchased as needed.

US PRICES > ACCESSORIES

Catalog Number	Description	Price

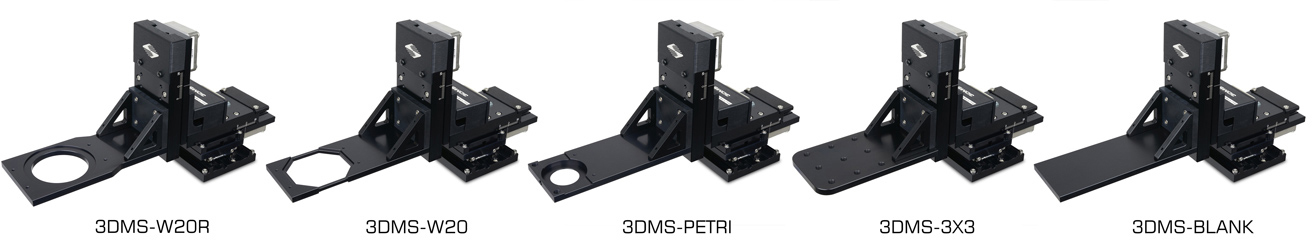

3DMS-W20¹	Stage bracket for Warner Series 20 octagonal (P & PH)	$ 663
3DMS-W20R¹	Stage bracket for Warner Series 20 round (PM)	$ 663
3DMS-3X3¹	Stage bracket with 3 X 3 M6 tapped holes	$ 663
3DMS-PETRI¹	Stage bracket for Petri dish and slides	$ 663
3DMS-BLANK¹	Stage bracket - blank	$ 663
3DMS-CUSTOM	Stage bracket - custom design	$ 1,145
3DMS-M	3-axis motorized stage mechanical only	$ 8,049
M100106	Flat side panel for controller (each)	$ 50

¹ No charge when ordering with the 3DMS-200 or 3DMS-285
