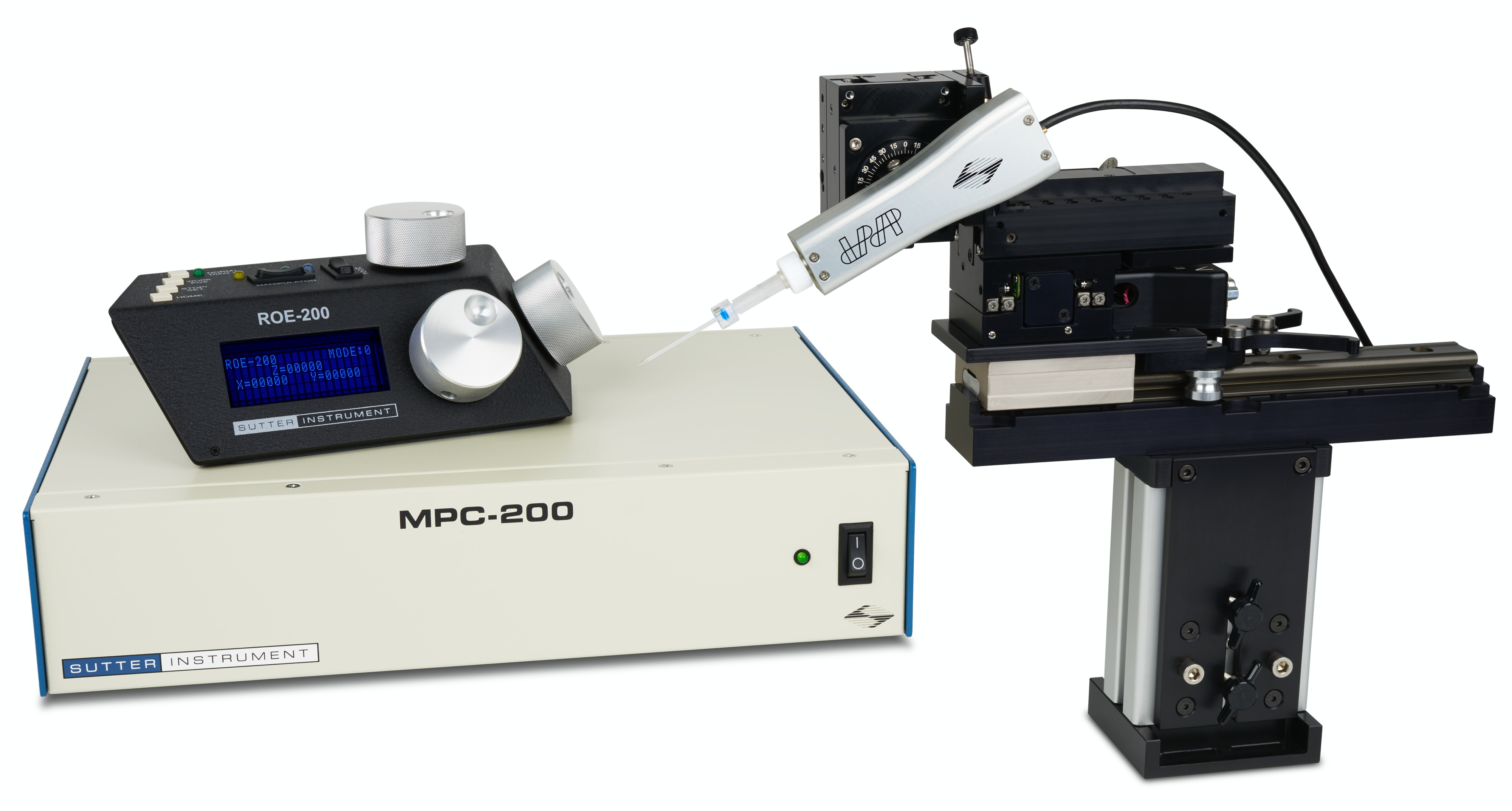

The MPC-365 System consists of the MPC-200 controller and one to six MP-865 micromanipulators.

MPC-200 Controller and ROE

Neurobiological experiments are becoming more complex. Many require multiple manipulators with control units that quickly become space and/or cost prohibitive. The MPC-200 is the solution you have been asking for. A single controller capable of running two manipulators! Sutter Instrument has taken the simplicity of the MP-225 controller and expanded it to run two manipulators from a single controller/ROE. The MPC-200 works with one or two of our world-renowned mechanicals, the MP-285 (MPC-385), the MP-225 (MPC-325) or the narrow format MP-865 (MPC-365).

If two manipulators aren't enough, a second controller can be daisy chained to allow the single ROE-200 to move up to four manipulators. Thus the system can be easily expanded to control highly sophisticated experiments.

The Sutter MPC-200 is electrically quiet. Unlike the competition, our multi-unit controller employs linear output circuitry. Sutter adds additional manipulators to the same controller without requiring potentially noisy chopper drives.

In all our manipulators, the 4th axis can be set up and changed without the need to connect an external computer to download and configure software. A separate configuration is allowed for each output on this manipulator controller. If desired, each manipulator can approach the prep at a different angle from the horizontal. The 4th axis can be configured between the X and Z-axes or the Y and Z-axes (useful when manipulator is rotated 90 degrees relative to the preparation).

Faster automated pipette exchange. The MPC-200 has faster “Home” and “Work Position” moves for quicker pipette exchange. Automation is set up and run via the same interface used in the MP-225 controller; however, the speeds of the automated movement are much faster.

Accelerated manual mode. For users who prefer manual pipette exchange we have added “Accelerated Mode” to the ROE. Using Accelerated Mode, the user can make quick manual moves in and out of a setup. Accelerated Mode amplifies the speed attainable in a manual move by smoothly accelerating to the maximum speed during sustained, fast turns of the ROE. Accelerated movement ends as soon as the user stops turning the knob. This mode can be fully disabled for those who feel the need for direct control of the pipette.

MP-865 Micromanipulator

Our new MP-865 "narrow format" mechanical is designed specifically for patch-slice work that require more than 2 or 3 pipettes, as well as for other setups where space is limited. We designed the MP-865 to minimize the width, allowing as many manipulators to be grouped together as possible. Travel in the Y-axis is shortened (12.5 mm) because radially oriented manipulators do not require long travel in the traverse axis. Travel in the X-axis has been increased to 50 mm to facilitate fast and easy pipette exchange.

The optional narrow-format stand and linear slide or rotating base is available for mounting the MP-865 mechanical. With the 150 mm throw of the linear slide, the manipulator can be quickly and smoothly retracted out to a location where there is easy access to the pipette for replacement. A rotating base can be used for mounting to large platform stages like the Sutter MT-78, or smaller Sutter MD Series platforms.

Additional components can be added at any time, allowing the user to develop a system tailored to his or her particular needs. The controller is self-detecting so there is no need for manual configuration of the components.

FEATURES

Quietest electronics in the industry optimized for single channel recording
Single controller and ROE will run two stepper motor drive manipulators
Self-detecting, daisy-chain capability allows control of four manipulators from one ROE-200
User-friendly interface: single button access to all major functions
Easily configurable virtual 4th axis set without external computer
Accelerated Mode for fast, manual manipulator movement
Easy toggle selection of Mode (speed/resolution, pulsed diagonal, Accelerated Mode)
Display indicates X, Y, Z coordinates, Mode, active manipulator
Robotic Home and Work Position moves for easy automated pipette exchange
Faster robotic moves than previous versions
Definable 4th axis for coaxial pipette movement, angle selected by DIP switches
Simple USB interface
Toggle switch selects which manipulator is connected to input device
LED and display indicate active manipulator
Ultra-low drift, ultra-smooth movement
Low-drift mechanical stability

FEATURES: MP-865 Mechanical

Mechanically robust construction for high stability
Precision cross-roller bearings
Three independent axes - 50 mm travel in X, 12.5 mm in Y and 25 mm in Z
Carries up to a kilogram
Suited for in vitro and in vivo electrophysiological recording
Universal mounting system for headstage or pipette holder
Optional MT-73 narrow stand with linear slide and built in rotating base

TECHNICAL SPECIFICATIONS

Resolution and Full Travel
Minimal microstep size is 46.88 nanometers per microstep
Display has single micron resolution
Full travel is 50 mm in X, 25 mm in Z and 12.5 mm in Y

Maximum Speed
MP-865 mechanical
3 mm/sec

Long Term Stability
< 1.0 micron in 4 hours

Dimensions
MPC-200 Controller
15.75 in x 10.75 in x 3.5 in | 40 cm x 27.3 cm x 9 cm
ROE-200
10 in x 6 in x 4 in | 25 cm x 15 cm x 23 cm

Weight
MP-865 (aluminum)
3.5 lbs | 1.6 kg

MPC-200 Controller
6.5 lbs | 3 kg
ROE-200
3.5 lbs | 1.6 kg

Electrical
115/230 Volts
50/60 Hertz power line

RoHS Compliant

MPC-200 CE Certificate
MPC-365 CE Certificate

US Prices > MPC-365
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number	Description	Price
	MPC-365 SYSTEMS
MPC-365*	One MP-865 manipulator mechanical, one MPC-200 controller, one ROE-200, mounting adapter plate, rod holder, hinged headstage mount, 4" dovetail extension, manipulator and ROE connecting cables, power cord and manual	$ 12,340
MPC-365-2*	ROE-200 with MPC-200 and (2) MP-865 mechanicals	$ 19,581
MPC-365-3*	ROE-200 with (2) MPC-200 controllers and (3) MP-865 mechanicals	$ 31,783
MPC-365-4*	ROE-200 with (2) MPC-200 controllers and (4) MP-865 mechanicals	$ 38,998
MPC-365-5*	(2) ROE-200 with (3) MPC-200 controllers and (5) MP-865 mechanicals	$ 46,226
MPC-365-6*	(2) ROE-200 with (2) MPC-200 controllers and (6) MP-865 mechanicals	$ 53,448

US Prices > COMPONENTS

Catalog Number	Description	Price
MPC-200	Controller box alone. Purchase this if you intend to daisy-chain two controllers to one ROE-200. In this configuration, up to four manipulators can be controlled by a single ROE-200. NOTE: This is not a stand-alone device. In order to function, the MPC-200 must be connected to a second MPC-200 with ROE-200 attached or be connected to its own ROE-200. Includes daisy chain cable, power cord and manual	$ 3,754
ROE-200	This is the ROE alone. Provides user input to one or more MPC-200 controllers. This component is intended for users who have an existing four-manipulator MPC-200 system with a single ROE-200 and wish to split it into two independent two-manipulator systems. Includes cable to connect ROE to controller	$ 2,041
MP-865-ML	The MP-865 (left handed) manipulator mechanical alone. Includes mounting adapter plate, rod holder, 4 inch dovetail extension, and cable to connect manipulator to controller.	$ 7,826
MP-865-MR	The MP-865 (right handed) manipulator mechanical alone. Includes mounting adapter plate, rod holder, 4 inch dovetail extension, and cable to connect manipulator to controller.	$ 7,826

MOUNTING SYSTEMS

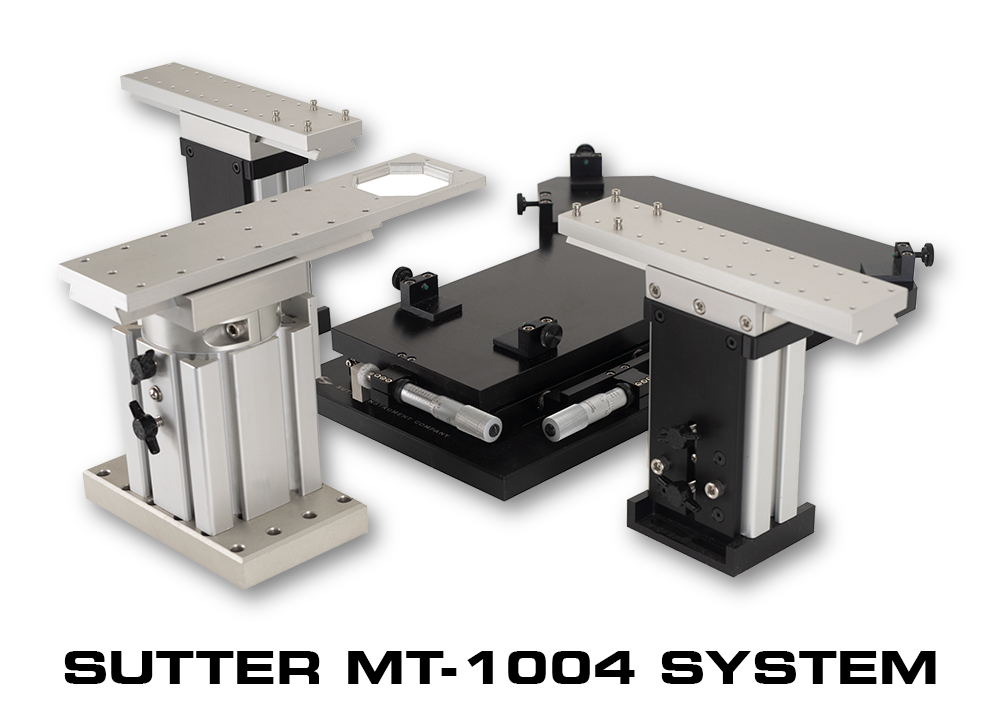

MT-1004 Systems (Click for image of system)
Includes the MT-500 manual X-Y translator, MT-150 chamber column, two MT-74 micromanipulator columns (without linear slide)

Catalog Number	Description	Price
MT-1004/Y51¹	MT-1004 for the Olympus BX51WI	$ 7,916
MT-1004/Y53¹	MT-1004 for the Olympus BX53/63	$ 7,916
MT-1004/Y71¹	MT-1004 for the Olympus IX71	$ 7,916
MT-1004/Z25¹	MT-1004 for the Zeiss Axioskop 2 FS	$ 7,916
MT-1004/Z45¹	MT-1004 for the Zeiss Axio Examiner	$ 7,916
MT-1004/N65¹	MT-1004 for the Nikon FN1	$ 7,916
MT-1004/L30¹	MT-1004 for the Leica DMLFS	$ 7,916
MT-1004/L35¹	MT-1004 for the Leica DM6000 FS	$ 7,916

¹ Please specify chamber type when ordering

US PRICES > CHAMBER COLUMNS

Catalog Number	Description	Price

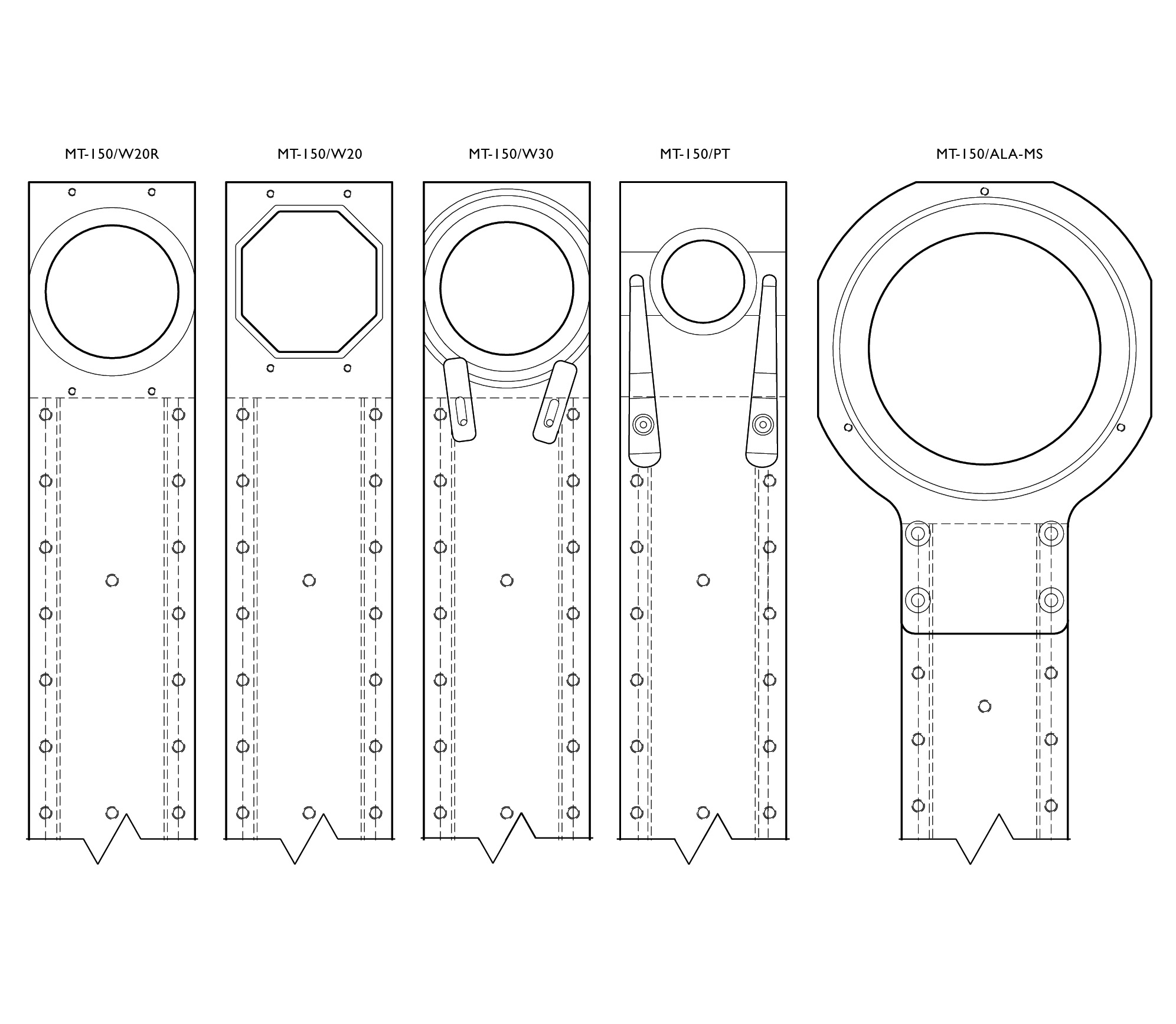

MT-150/W20	Chamber column for Warner Series 20 chamber (octagon)	$ 1,081
MT-150/W20R	Chamber column for Warner Series 20 chamber (round)	$ 1,081
MT-150/ALA35	Chamber column for ALA 35mm chamber	$ 1,081
MT-150/ALA-MS	Chamber column for ALA MS	$ 1,081
MT-150/CUST	Chamber column for non-standard recording chamber	$ 1,223
MT-150/PT	Chamber column for petri dish or lid	$ 1,081
MT-150/AUTO	Chamber column for AutoMate round stage adapter	$ 1,081

ACCESSORIES


Catalog Number	Description	Price

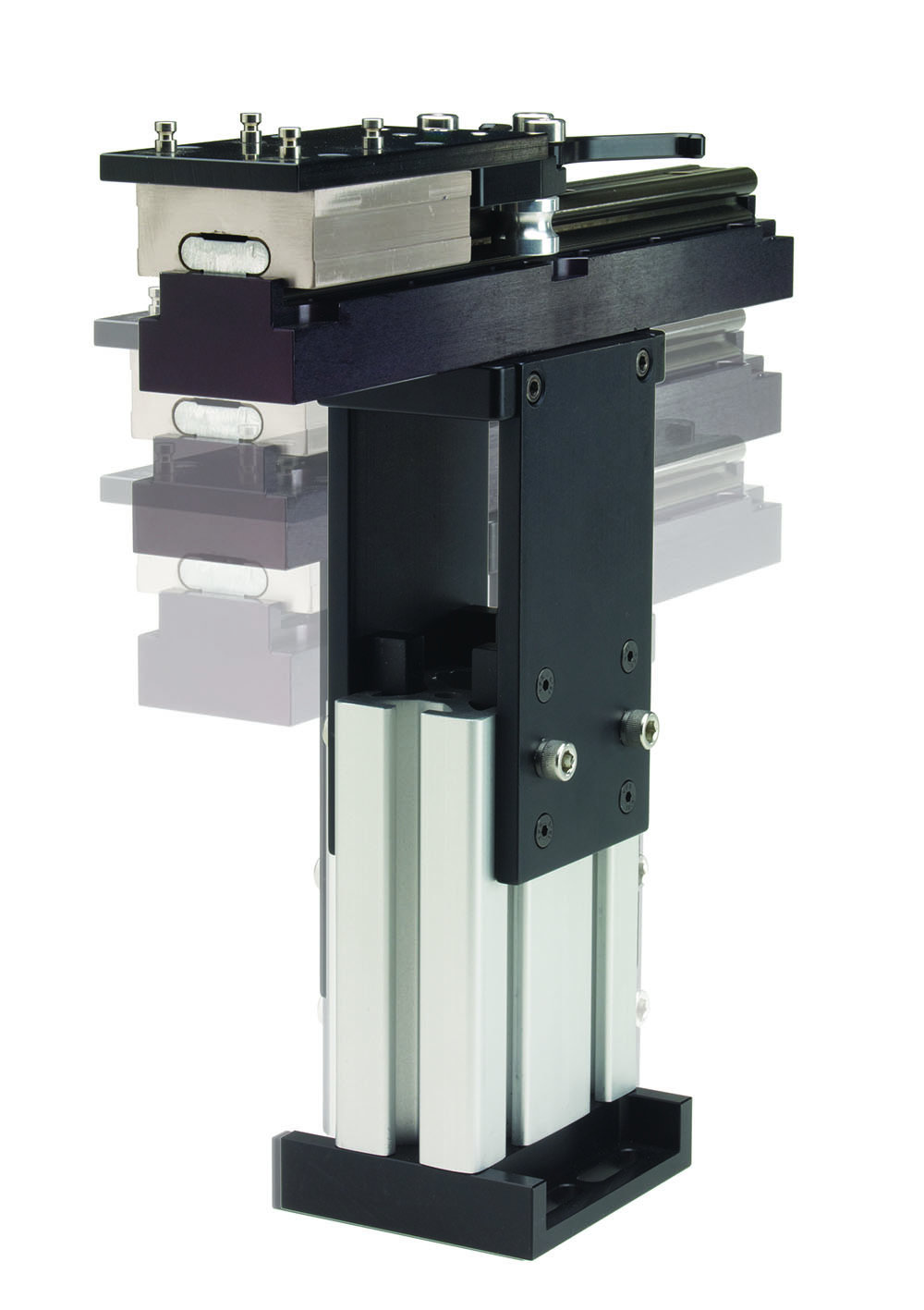

MT-73¹	Narrow-format stand with linear slide	$ 1,872
MT-74¹	Narrow-format stand (no linear slide)	$ 1,015
MAG-MT74	Magnetic feet for MT-74 (set of two)	$ 94

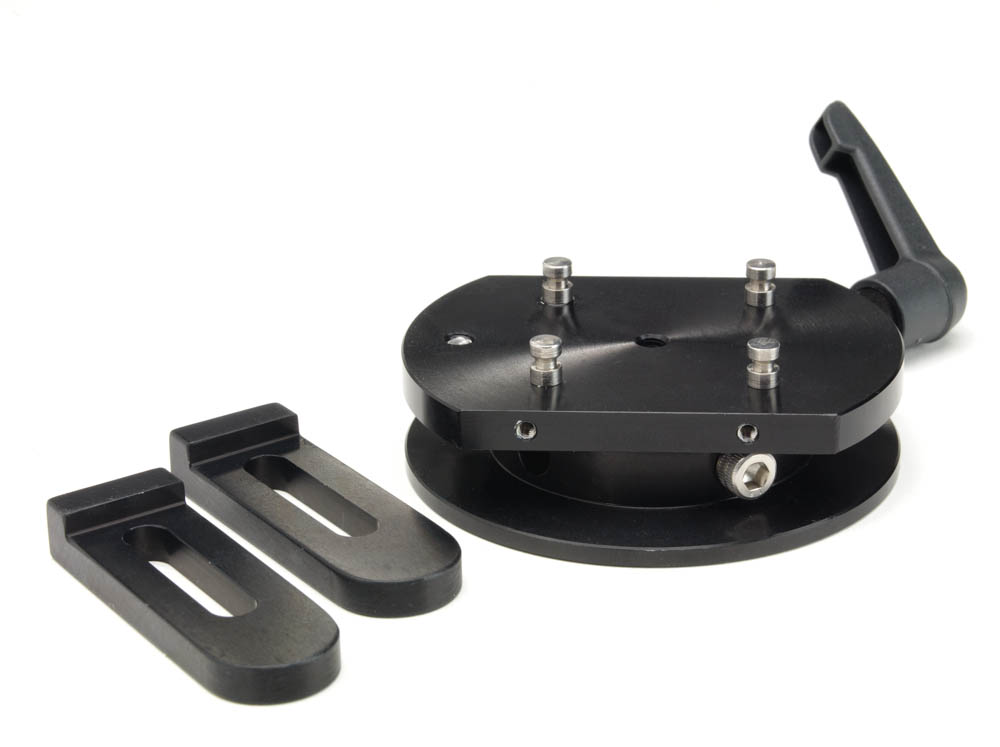

265RBI²	Rotating base	$ 930
M100106	Flat side panel for MPC-200 controller (each)	$ 50
MP-RISER-0.5³	1/2 inch riser	$ 165
MP-RISER-1.0³	1 inch riser	$ 226
MP-CLIP⁴	Rod holder (for rod OD 6.25 mm or larger)	$ 125
MP-ROD	Rod holder (for rod OD 6.25 mm or larger)	$ 125
EHOLDER	Micropipette holder - 1.0-1.5 mm glass	$ 147

¹ Suitable for upright microscopes.
² Useful with Sutter MD stand and large platform stages such as the MT-78-FS, MP-78 and MPC-78.
³ Risers can be combined to achieve desired height.
⁴ Suitable for multielectrode probes.

For detailed information on mounting our micromanipulators, refer to the Mounting Systems section or phone for assistance.
