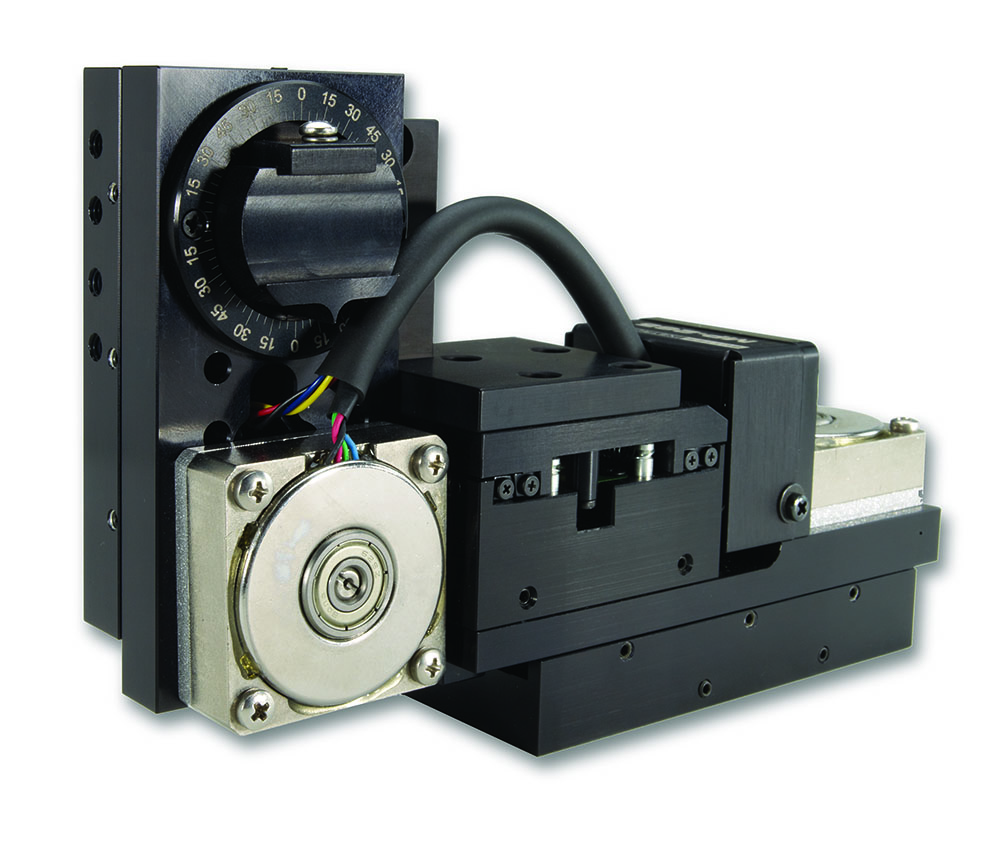

Our new MP-265/M "narrow format" mechanical is designed especially for patch-slice manipulator systems that require more than 2 or 3 pipettes as well as for other setups where space is limited.

The MP265/M mechanical builds on our existing manipulator line in several ways. First, the narrow format means more manipulators can be grouped around a recording chamber. Next, the narrow format MP-265/M allows a high precision manipulator to be inserted into small spaces in existing setups. Finally, travel in the Y-axis is shortened (12.5 mm) both to economize on width and because radially oriented manipulators do not require long travel in the traverse axis.

The MP-265/M manipulator is designed specifically for systems requiring 4 or more manipulators. To this end, we have put together systems with special pricing for 4, 5 and 6 manipulators, and 2 or 3 dual manipulator controllers. The optional narrow-format stand and linear slide or rotating base is available for mounting the MP-265/M mechanicle. With the 150 mm throw of the linear slide, the manipulator can be quickly and smoothly moved out to a location where there is easy access to the pipette for replacement. A rotating base can be used for mounting to large platform stages like the Sutter MT-78, or smaller Sutter MD Series platforms.

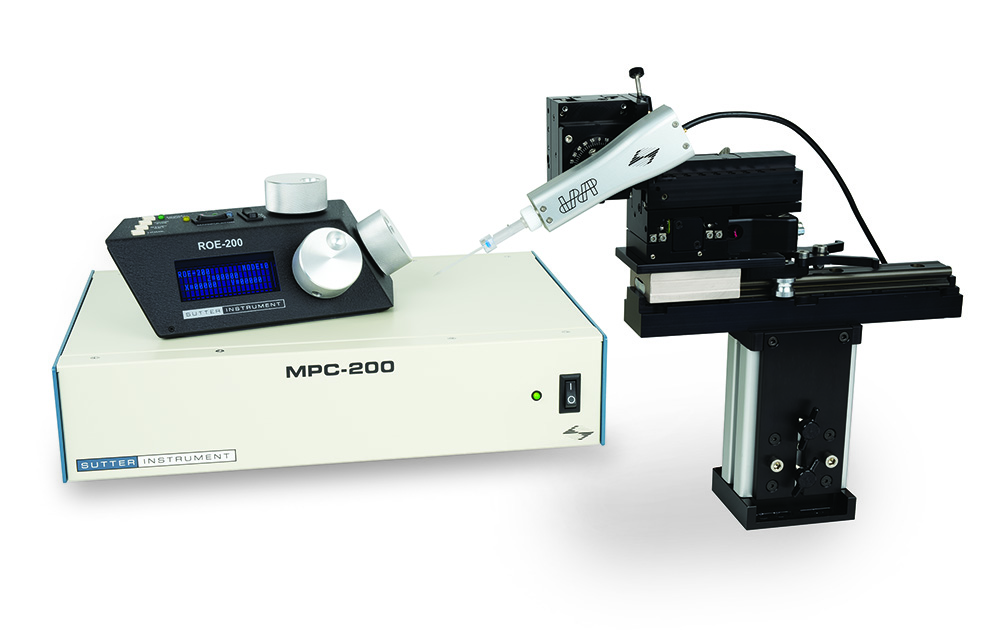

MPC-365 systems are formed by using the popular Sutter MPC-200 dual manipulator controller and ROE-200, with one or more MP-265/M mechanicals. A single MPC-200 controllers and ROE-200 can run one or two MP-265/M manipulators. A single ROE-200, when paired with two MPC-200 controllers can control up to four MP-265/M manipulators. If you require more manipulators in a single setup, you simply duplicate the smaller systems. A new firmware version of the MPC-200/ROE-200 automatically recognizes the MP-265/M mechanical and adjusts accordingly.

FEATURES

Single controller and ROE will run two stepper motor drive manipulators
Self-detecting, daisy-chain capability allows control of four manipulators from one ROE-200
User-friendly interface: single button access to all major functions
New Accelerated Mode for fast, manual manipulator movement
Easy toggle selection of Mode (speed/resolution, pulsed diagonal, Accelerated Mode)
Display indicates X, Y, Z coordinates, Mode, and active manipulator
Robotic Home and Work Position moves for easy automated pipette exchange
Faster robotic moves than previous versions
Definable 4th axis for coaxial pipette movement, angle selected by DIP switches
Simple USB interface
Toggle switch selects which manipulator is connected to input device
LED and display indicate active manipulator
Low-drift mechanical stability
Narrow stand with linear slide or rotating base mounting options

TECHNICAL SPECIFICATIONS

Resolution
Minimal microstep size is 62.5 nanometers per microstep
Display has single micron resolution

Maximum Speed
MP-265 Mechanical
3 mm/sec

Drift
Drive Mechanism
< 0.5 microns / 20 hours

Dimensions
Controller (MPC-200)
15.75 in x 10.75 in x 3.5 in | 40 cm x 27.3 cm x 9 cm
ROE
10 in x 6 in x 4 in | 25 cm x 15 cm x 23 cm

Weight
Controller
6.5 lbs | 3 kg
ROE
3.5 lbs | 1.6 kg

Electrical
115/230 Volts
50/60 Hertz power line

RoHS Compliant

MP-265M CE Certificate

US Prices > MP-265/MPC-365
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

Catalog Number	Description	Price
MPC-365*	System includes one MP-265/M manipulator mechanical, one MPC-200 controller, one ROE-200, mounting adapter plate, rod holder, 4" dovetail extension, manipulator and ROE connecting cables, power cord and manual	$ 10,250
MPC-365-2*	MPC-365 with (2) MP-265/M mechanicals	$ 16,265
MPC-365-3*	MPC-365 with (3) MP-265/M mechanicals and (2) MPC-200 controllers	$ 25,520
MPC-365-4*	MPC-365 with (4) MP-265/M mechanicals and (2) MPC-200 controllers	$ 30,975
MPC-365-5*	MPC-365 with (5) MP-265/M mechanicals, (3) MPC-200 controllers and (2) ROE-200 user interfaces	$ 39,552
MPC-365-6*	MPC-365 with (6) MP-265/M mechanicals, (3) MPC-200 controllers and (2) ROE-200 user interfaces	$ 45,120
* Indicate right- or left-handed setup when ordering

US Prices > COMPONENTS

Catalog Number	Description	Price
MPC-200	Controller box alone. Purchase this if you intend to daisy-chain two controllers to one ROE-200. In this configuration, up to four manipulators can be controlled by a single ROE-200. NOTE: This is not a stand-alone device. In order to function, the MPC-200 must be connected to a second MPC-200 with ROE-200 attached or be connected to its own ROE-200. Includes daisy chain cable, power cord and manual	$ 3,120
ROE-200	This is the ROE alone. Provides user input to one or more MPC-200 controllers. This component is intended for users who have an existing four-manipulator MPC-200 system with a single ROE-200 and wish to split it into two independent two-manipulator systems. Includes cable to connect ROE to controller	$ 1,695
MP-265/M*	The MP-265 manipulator mechanical alone. Includes mounting adapter plate, rod holder, 4 inch dovetail extension, and cable to connect manipulator to controller	$ 6,350
* Indicate right- or left-handed setup when ordering

US Prices > ACCESSORIES

Catalog Number	Description	Price

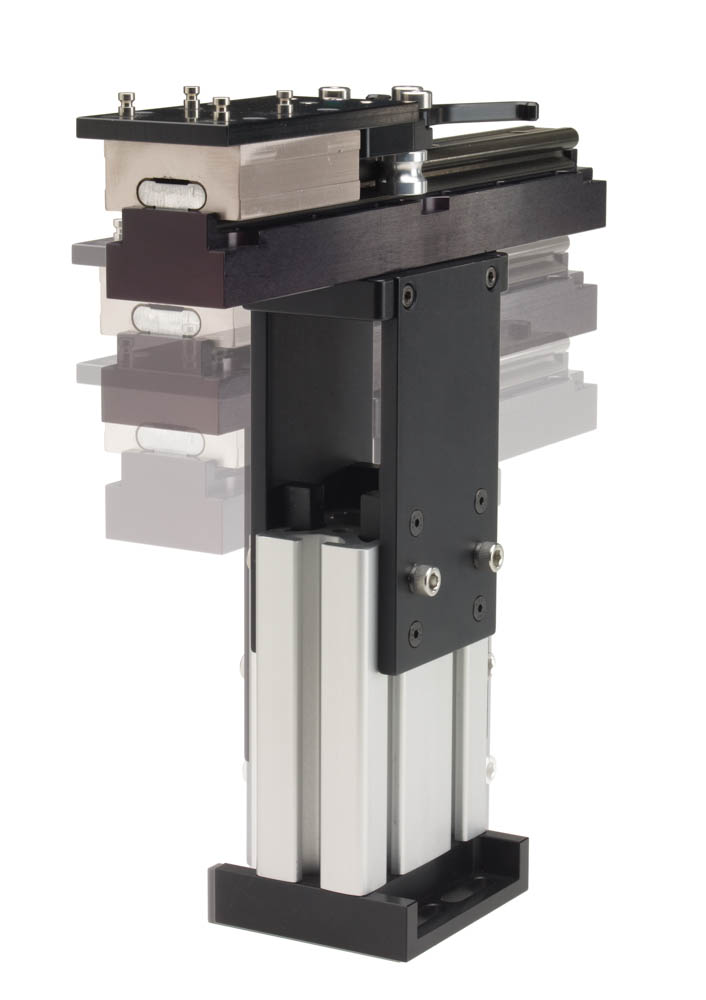

MT-73¹	Narrow format stand with linear slide	$ 1,549

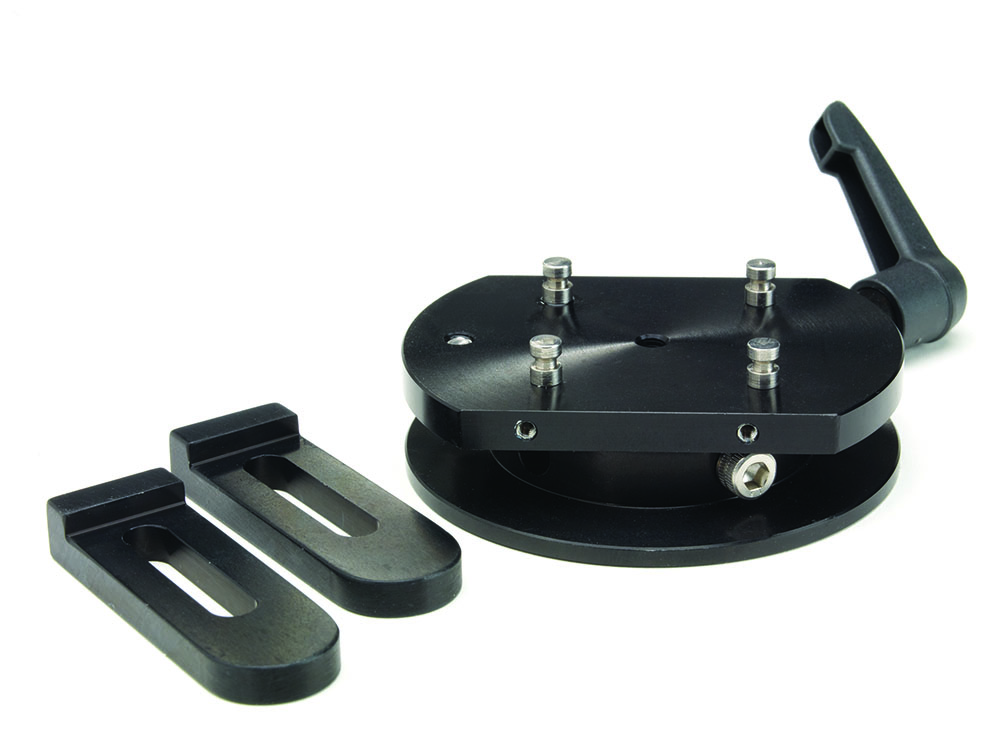

265RBI²	Rotating base for MP-265	$ 485
M100106	Flat side panel for controller (each)	$ 42
MP-RISER-0.5³	1/2 inch riser	$ 136
MP-RISER-1.0³	1 inch riser	$ 187

¹ Suitable for upright scopes
² Useful with Sutter MD stand and large platform stages such as the MT-78-FS, MP-78 and MPC-78
³ Risers can be combined to achieve desired height
