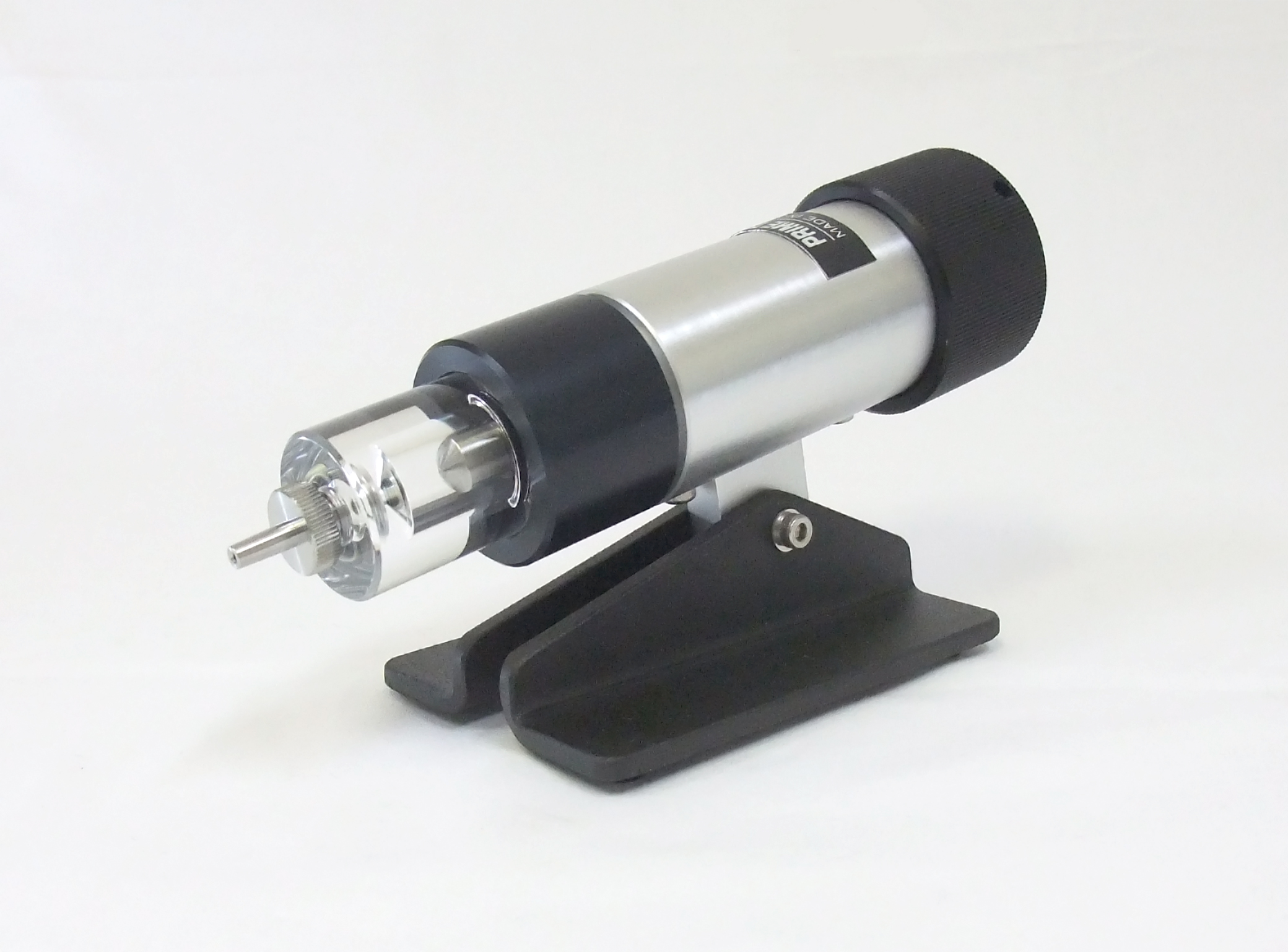

PrimeTech HDJ-M3
Hydraulic Microinjector

The HDJ-M3 microinjector from PrimeTech is a manual water/oil type pressure injector. The HDJ-M3 will allow you to inject spermatozoa, DNA and/or other solutions into somatic cells, unfertilized eggs or embryos. Manual operation with HDJ-M3 allows maximum sensitivity and optimized performance during micromanipulation.

HDJ-M3 is compatible with other models in the PMM Series, including the PMM-150FU Piezo impact drive unit

    FEATURES
  • A large plunger knob that is extremely light to the touch means that you can operate the HDJ-M3 with a single digit
  • Airtight, with luer connector and O-ring means that you can expect leakage-free microinjection
  • Flexible layout accommodates multiple connector configurations

TECHNICAL SPECIFICATIONS

Syringe Volume: 1.9 ml
Screw Pitch: 0.05 mm
Stroke: 20 mm

Dimensions
2.75 in(W) x 7.2 in(D) x 3.5 in(H) | 70 mm(W) x 182.5 mm(D) x 90 mm(H)

Weight
1.9 lbs | 0.88 kg

(Approved for animal use only)

US Prices > PrimeTech HDJ-M3
For availability outside North & South America, please contact Sutter Instrument. Prices subject to change without notice.

Prices for third-party products listed on our website are provided for convenience and may not reflect the most current rates. Due to occasional supplier price changes and additional charges such as tariffs, final pricing may vary. Please contact us to confirm current pricing before placing an order.

Catalog Number Description Price
HDJ-M3 Manual Microinjector $2,427

Available from Sutter in the Western Hemisphere. Please contact Sutter for other international destinations.
