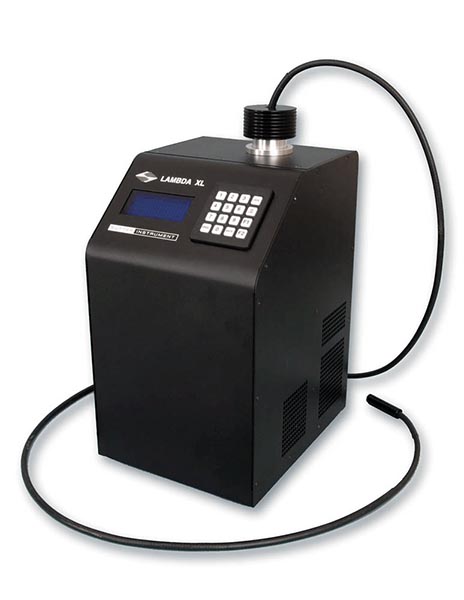

Lambda XL
Extended Life Light Source
The Lambda XL is a broad spectrum, highly stable light source with a ±1% peak-to-peak fluctuation. The connection to the microscope is made through a liquid light guide, which assures output uniformity in the field of view. Two light guide options are available, one optimized for the near UV-visible and the other for the visible-near IR regions.
The output at the end of the light guide is similar to that of our popular 300W Lambda LS xenon arc light source. The lamp module is expected to last in excess of 10,000 hours and maintain at least 50% of the original intensity.
The compact, stand-alone cabinet design contains the bulb, lamp housing, power supply and optics in a single enclosure. The design includes a filter wheel and SmartShutter® driver, making it a versatile choice for fluorescence imaging applications. The Sutter filter wheel with SmartShutter or the stand-alone SmartShutter can be accommodated within the body of the Lambda XL. Filters with an absorbing layer are likely to be damaged by the extraordinary power of the Lambda XL and are not recommended for use with this product.
The light intensity can be adjusted to different levels of attenuation. When the optional filter wheel is used, each filter position can be associated with its own programmable attenuation level, selected every time the filter is called*.
Mounting adapters for Nikon, Olympus, Zeiss and Leica microscopes are available.
- FEATURES
- 10,000 hour expected lifetime**
- No high-voltage pulse
- Built-in driver for filterwheel and SmartShutter®
- Very stable output
- Compact stand-alone design
- USB interface
* Patent pending
** Bulb carries a prorated 2-year warranty
TECHNICAL SPECIFICATIONS
Output Range
330 to 700 nm
Lamp Life
10,000 hours
Dimensions
9.4 in x 7.6 in x 12.6 in | 23.9 cm x 19.3 cm x 32 cm
Weight
16.35 lbs | 7.4 kg
Electrical
120/240 Volts
50/60 Hertz power line
US Prices > Lambda XL
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.
| Catalog Number | Description | Price |
| LB-XL | Lambda XL light source, power cord and manual | $6,635 |
|---|
US Prices > Accessories
| Catalog Number | Description | Price |
| LLG/XL | Liquid light (2 meters, 3 mm diameter) and heat sink | $ 1,678 |
|---|---|---|
| LLG/5XL1 | Liquid light (2 meters, 5 mm diameter) and heat sink | $ 1,678 |
| LLG/XL3802 | Liquid light (2 meters, 3 mm diameter) and heat sink | $ 1,678 |
| LLG/5XL3802 | Liquid light (2 meters, 5 mm diameter) and heat sink | $ 1,678 |
| IQ25-XL | 25 mm SmartShutter® with housing to fit Lambda XL | $ 1,556 |
| LB10-NWIQ/XL | 10 position 25mm filter wheel with SmartShutter® for mounting in Lambda XL | $5,040 |
| LB10-WHS4IQ/XL | 4 position filter wheel with SmartShutter® for mounting in Lambda XL | $ 5,050 |
| O8001153 | Replacement lamp | $ 1,953 |
| O7776564 | Replacement 5 mm light guide (300 series) | $ 665 |
| O777648 | Replacement 5 mm light guide (380 series) | $ 665 |
1 This lightguide offers a larger field of view but less intensity per unit area
2 Allows higher output into the near IR
3 Requires installation and re-alignment at Sutter
4 Maximum UV transmission
Mounting adapters for Nikon, Zeiss, Leica and Olympus microscopes are available. Please see the Microscope Adapters page or contact Sutter Instrument for pricing and further information.
