Lambda TLED / TLED+
LED Transmitted Light Source

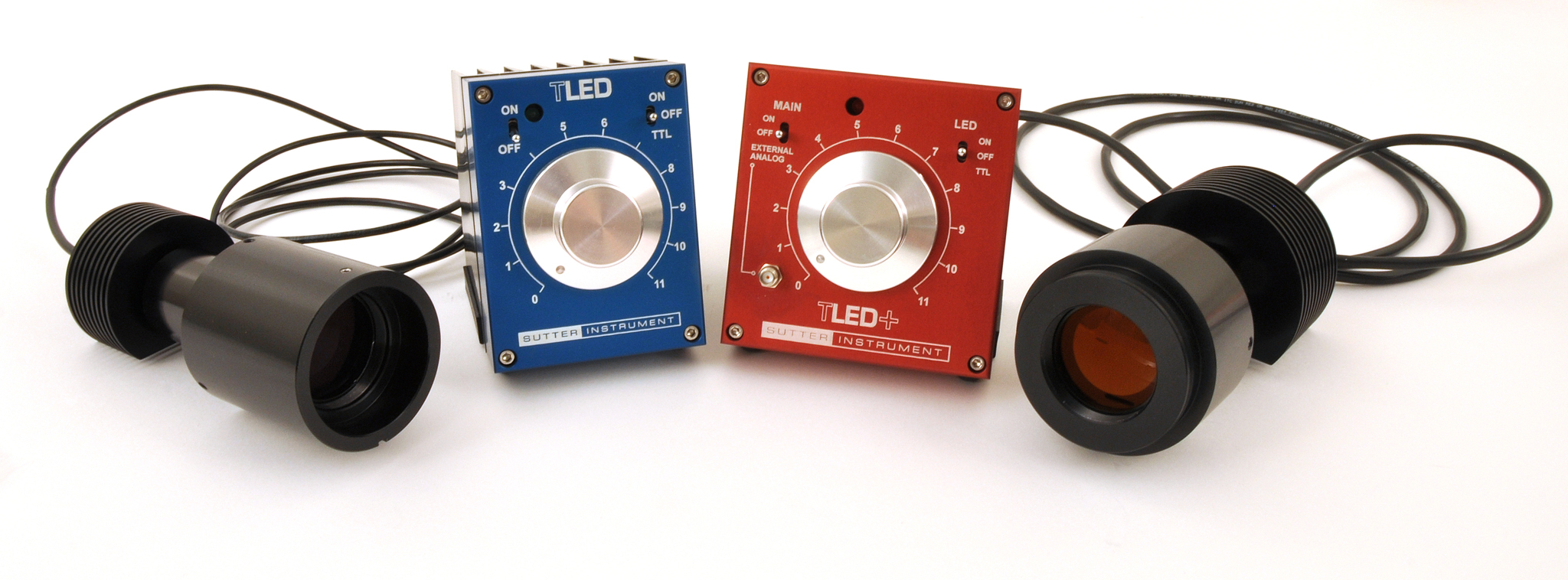

The Lambda TLED and TLED+ are stand-alone LED light sources that can be used with the transmitted light path of a microscope or in other applications with similar requirements.

The basic system consists of an LED mounted on a special black-anodized aluminum heat sink and a controller. Both TLED and TLED+ controllers are powered by a rugged modular universal power supply. The controllers provide intensity control and on-off control via a toggle switch or TTL logic. The on-off time is < 25 µsecs when using TTL control. In addition to digital input control, the Lambda TLED+ has an analog input to modulate the LED intensity. The Lambda TLED and TLED+ are expected to have stable output that will last in excess of 50,000 hours.

The Lambda TLED and TLED+ can be ordered with a high-output white light LED making it a suitable light source for contrast methods including Phase and Differential Interference Contrast (DIC).

As an alternative to the standard white-light LED, we have several options available including an IR-LED which is suitable for experiments requiring IR-DIC. Please contact Sutter for details.

Our dual channel Lambda TLED+ option combines two high power LEDs into a single light path. The TLED-DC includes a 460 nm LED for stimulation, while the second channel passes the phosphor emission from a white light LED. The white light channel can be used to access spectra between 510 nm to 630 nm and is suitable for a variety of applications. Both channels are driven by individual TLED+ controllers and can be triggered, also individually, by a TTL signal. Alternate wavelength configurations are available.

Each Lambda TLED/TLED+ system includes an optical mounting adapter for the microscope and detailed installation instructions. Mounting adapters are designed to fit most models of Nikon, Olympus, Zeiss and Leica microscopes. Custom adapters for the Lambda TLED/TLED+ are available at an additional cost.

The TLED-FT is a powerful and compact array of 9 LEDs used to deliver a homogenized beam of light to the sample. Useful for illuminating a 96 well plate, the TLED-FT is available in blue, green, red and white light configurations. The TLED controller provides stable, adjustable light intensity by switch or TTL. Ideal for optogenetics, and transparent samples.

The TLED-RL is a ring light illuminator for stereo microscopes with lenses up to 65 mm in outside diameter. The ring light is composed of a circular assembly of many white light LEDs that provide even and direct illumination of the sample.

    FEATURES
  • > 50,000 hour lifetime
  • < 25 µsecs ON-OFF time
  • TTL control (with polarity switch)
  • Very stable output
  • Compact stand-alone design
  • Easy installation
    COMMON APPLICATIONS
  • Transmitted light
  • Phase Contrast
  • Differential Interference Contrast (DIC)

TECHNICAL SPECIFICATIONS

Output Range
White light (400 nm - 700 nm)

Noise/Short term stability
0.01%

LED Life
> 50,000 hours

Control Box Dimensions
TLED
3 in x 3.5 in x 4.1 in | 7.6 cm x 8.9 cm x 10.2 cm
TLED+
4 in x 3.25 in x 4.1 in | 10.2 cm x 8.3 cm x 10.2 cm

Weight
2.2 lbs | 1.0 kg

Electrical
120/240 Volts
50/60 Hertz power line
75 Watts max

Lambda TLED CE Certificate
Lambda TLED+ CE Certificate


US Prices > Lambda TLED / TLED+
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.

LAMBDA TLED Single Channel LED Light Source
Includes Lambda TLED light source, TLED controller, white light LED and power supply
Catalog Number Description Price
TLED-N Lambda TLED for Nikon $2,035
TLED-N40 Lambda TLED for Nikon E400/E600 $2,035
TLED-N50 Lambda TLED for Nikon AZ100 $2,035
TLED-N65 Lambda TLED for Nikon FN1 $2,035
TLED-Y Lambda TLED for Olympus $2,035
TLED-Z Lambda TLED for Zeiss $2,035
TLED-L Lambda TLED for Leica $2,035
TLED-C Lambda TLED for C-mount $2,035

LAMBDA TLED+ Single Channel LED Light Source
Includes Lambda TLED+ light source, TLED+ controller, white light LED and power supply
Catalog Number Description Price
TLEDPLUS-N Lambda TLED+ for Nikon $2,355
TLEDPLUS-N25 1 Lambda TLED+ for Nikon TE200/300, Diaphot 200/300 $2,355
TLEDPLUS-Y Lambda TLED+ for Olympus $2,355
TLEDPLUS-Z Lambda TLED+ for Zeiss $2,355
TLEDPLUS-L Lambda TLED+ for Leica $2,355

LAMBDA TLED-RGB LED Light Source
Includes Lambda TLED-RGB light source, TLED controller and power supply
Catalog Number Description Price
TLED-RGB-N Lambda TLED-RGB for Nikon $2,250
TLED-RGB-Y Lambda TLED-RGB for Olympus $2,250
TLED-RGB-L Lambda TLED-RGB for Leica $2,363

LAMBDA TLED-FT LED Light Array
Includes Lambda TLED-FT light array, TLED controller and power supply.
Please specify either blue, green, red or white light LEDs when ordering.
Catalog Number Description Price
TLED-FT Lambda TLED-FT light array $2,600

LAMBDA TLED-RL LED Light Source
Includes Lambda TLED-RL light source, TLED controller and ring light
Catalog Number Description Price
TLED-RL Lambda TLED-RL reflected light illuminator $1,615

ACCESSORIES
Catalog Number Description Price
TRIGGER USB trigger box $525

Custom mounting adapters are available at an additional cost. Contact Sutter for details.

* Other wavelengths may be available. Contact Sutter for details.
1 Replaces the epi-illuminator


RELATED PRODUCTS
Lambda 10-3
Lambda 10-2
Lambda 10-B

TECHNICAL INFORMATION

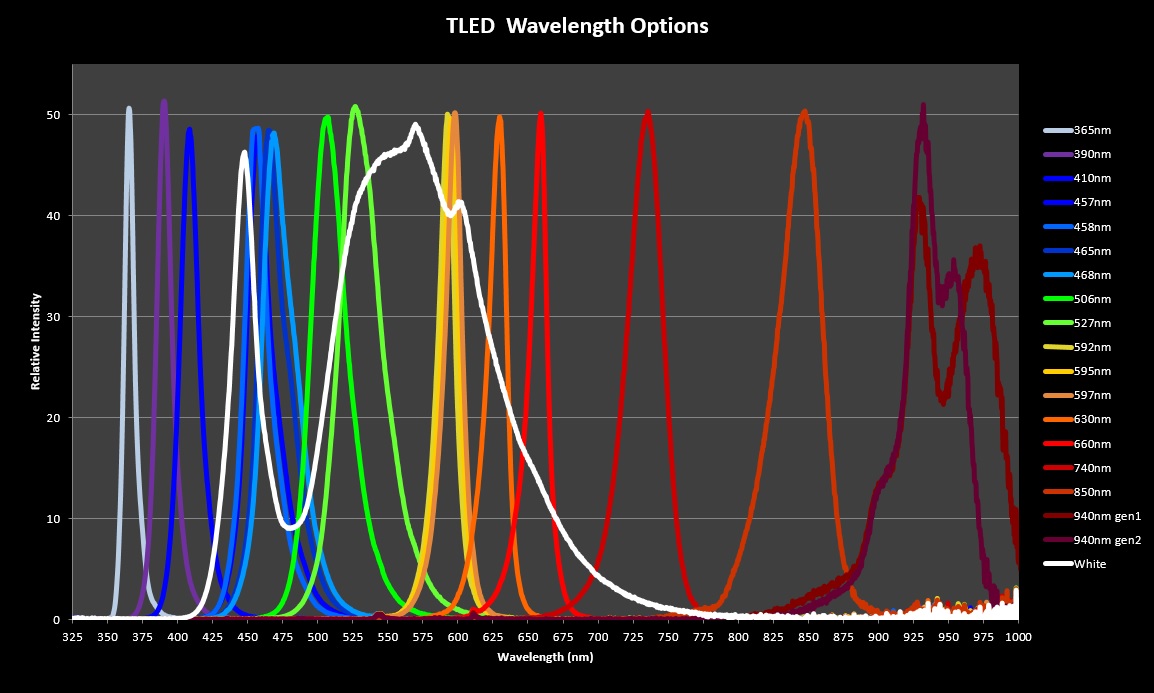

Available Wavelengths
