Lambda FLED
Fluorescent Light Source
The Lambda FLED was designed as a high-power LED driver for fluorescence microscopy. Based on our proven TLED+ design, the FLED has been optimized for single-channel, high-current LEDs used as excitation light sources.

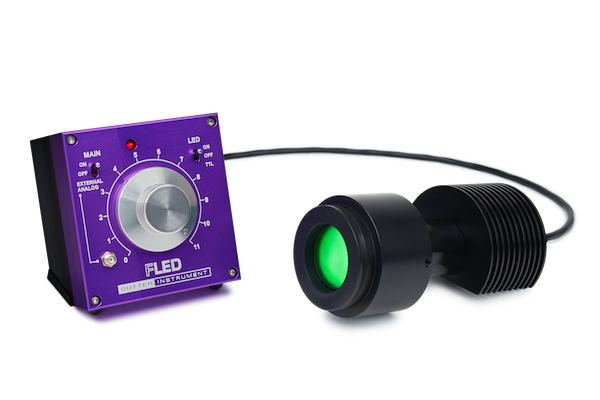

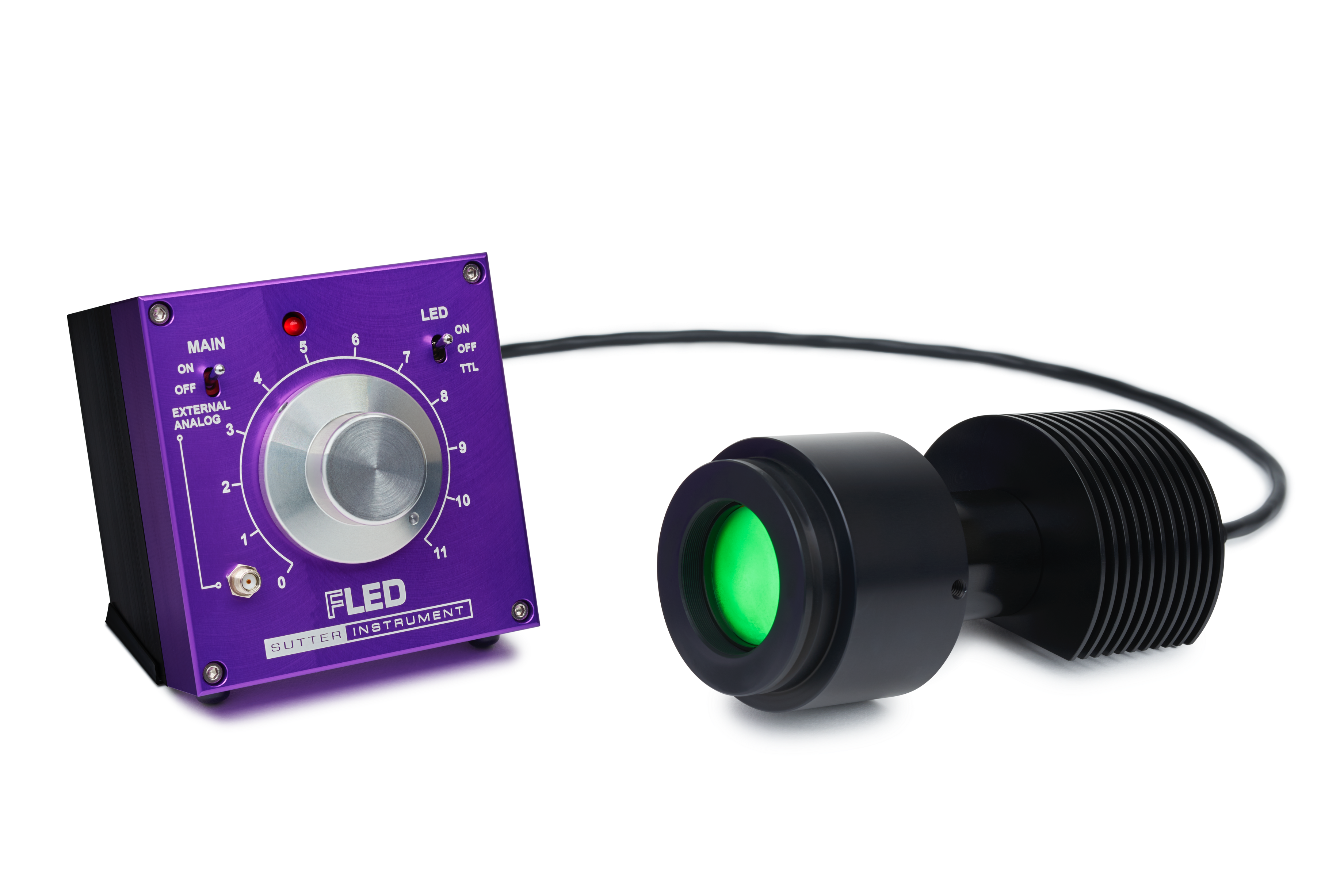

The basic system consists of an LED mounted on a special black-anodized aluminum heat sink and a controller. The controller is CNC machined from solid aluminum billet, and powered by a rugged modular universal power supply. The FLED provides intensity control and on-off control via a toggle switch or TTL logic. The on-off time is less than 25 µsecs when using TTL control. In addition to digital input control, the Lambda FLED has an analog input to modulate the LED intensity. The Lambda FLED is expected to have stable output that will last more than 50,000 hours.
The Lambda FLED can be ordered with several different wavelength-specific LEDs that range from 365 nm to 940 nm. Please call us if you require a wavelength that is not listed.
Our dual channel Lambda FLED option combines two high power LEDs into a single light path. The FLED-DC allows the use of two channels for fluorescence imaging. Both channels are driven by individual FLED controllers and can be triggered, also individually, by a TTL signal. For greater than two LEDs in a setup, please see our Lambda 421 or Lambda OBC.
| Product | Wavelength options (nm)* | External Control |
| FLED | 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940 | Digital (BNC) / Analog (SMA) |
Each Lambda FLED system includes an optical mounting adapter for the excitation port of the microscope and detailed installation instructions. Mounting adapters are designed to fit most models of Nikon, Olympus, Zeiss and Leica microscopes. Custom adapters are available at an additional cost.
- FEATURES
- > 50,000 hour lifetime
- < 25 µsecs ON-OFF time
- TTL control (with polarity switch)
- Very stable output
- Compact stand-alone design
- Easy installation
- COMMON APPLICATIONS
- Fluorescent microscopy
- Ultra high speed wavelength selection (FLED-DC)
TECHNICAL SPECIFICATIONS
Output Range
White light (400 nm - 700 nm)
Noise/Short term stability
0.01%
LED Life
> 50,000 hours
Control Box Dimensions
FLED
4 in x 3.25 in x 4.1 in | 10.2 cm x 8.3 cm x 10.2 cm
Weight
2.2 lbs | 1.0 kg
Electrical
120/240 Volts
50/60 Hertz power line
75 Watts max
US Prices > Lambda FLED
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.
| LAMBDA FLED Single Channel LED Light Source | ||
| Includes Lambda FLED light source, FLED controller and power supply | ||
| *Please select one wavelength when ordering: (in nm) 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940 | ||
| Catalog Number | Description | Price |
| FLED-N | Lambda FLED for Nikon | $3,448 |
|---|---|---|
| FLED-N251 | Lambda FLED for Nikon TE200/E300, Diaphot 200/300 | $3,448 |
| FLED-N50 | Lambda FLED for Nikon AZ100 | $3,448 |
| FLED-Y | Lambda FLED for Olympus | $3,448 |
| FLED-Z | Lambda FLED for Zeiss | $3,448 |
| FLED-L | Lambda FLED for Leica | $3,448 |
| FLED-C2 | Lambda FLED with C-mount | $3,448 |
| LAMBDA FLED-DC Dual Channel LED Light Source | ||
| Includes dual channel Lambda FLED light source, two FLED controllers and power supplies. | ||
| *Please select TWO wavelengths when ordering: (in nm) 340, 365, 385, 410, 440, 460, 480, 506, 530, 561, 590, 630, 660, 740, 850, 940 | ||
| Catalog Number | Description | Price |
| FLED-DC-N | Dual Channel Lambda FLED for Nikon | $ 7,012 |
|---|---|---|
| FLED-DC-Y | Dual Channel Lambda FLED for Olympus | $ 7,012 |
| FLED-DC-Z | Dual Channel Lambda FLED for Zeiss | $ 7,012 |
| FLED-DC-L | Dual Channel Lambda FLED for Leica | $ 7,012 |
| FLED-DC-C | Dual Channel Lambda FLED with C-mount | $ 7,012 |
| ACCESSORIES | ||
| Catalog Number | Description | Price |
| TRIGGER3 | USB trigger box | $ 631 |
* Other wavelengths and wavelength combinations may be available. Contact Sutter for details.
1 Replaces the epi-illuminator
2 Suitable for SOM microscope
3 Compatible with Micro-Manager software
Custom mounting adapters are available on all models at an additional cost. Contact Sutter for details.
