Lambda 10-3
Optical Filter Changer

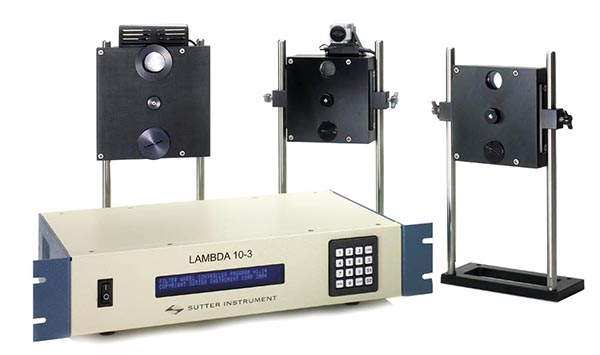

The Lambda 10-3 is the latest generation of Sutter's high performance filter wheel changers. The controller now offers faster switching times, synchronous independent control of 3 filter wheels and 2 shutters (or 2 filter wheels and 3 shutters), and expanded communication interface options. Recent advances in motor technology allow the Lambda 10-3 to achieve switching times of 40msec between adjacent filters. In addition, the controller commands can now be accessed via USB, serial, parallel, and keypad interfaces.
The Lambda 10-3 controls a variety of standard Sutter filter wheels including the popular 10 position 25mm wheel, a lighter 4 position 25 mm wheel, a 10 position 32 mm wheel, 5 position 50 mm wheel, and a compact belt-drive 4 position wheel. The embedded controllers automatically detect the equipment installed and the source of the external commands, so there are no jumper wires or switches to set. There are seven speed settings available to optimize the rate of movement in accordance with the load of the wheel. The Lambda 10-3 can operate up to 40 msec switching time with the traditional 25 mm filter wheel as well as our newer, high-speed 32 mm version. The 4 position wheel (LB10-NWHS4) provides additional speed and can achieve switching times of less than 33 msec. Nearly all of our filter wheels employ a direct drive system. This design eliminates problems with belt slippage and backlash, assuring that our wheels are exceptionally robust.
Each wheel will accommodate filters from 1 to 9 mm in thickness, allowing multiple filters to be used in each position. For instance, this allows users to insert a neutral density filter along with an interference filter in a single position. We have designed the body of the filter wheel with a trap to eliminate light scatter. For added stability, non-emission filter wheels come with a sturdy support stand and 12 inch rods. In addition to filter wheels, the Lambda 10-3 controller supports our patented stepper-motor controlled SmartShutter® as well as the Uniblitz® shutter. Either shutter can be mounted directly onto the wheel, providing a compact wheel/shutter package for systems with mounting contraints.
Both shuttered and non-shuttered filter wheels can be installed directly on the microscope in a number of locations: excitation, emission, Keller ports, and the trinocular head. Up to two excitation and/or neutral density filter wheels can be used with the Lambda LS xenon light source and liquid light guide, in vibration sensitive systems. The SmartShutter can be mounted independently from the wheel in any location in the light path (including the Lambda LS and Lambda DG-4/DG-5), and driven in a stand-alone configuration by the Lambda 10-3 controller. The microscope specific adapters necessary for any configuration of wheels and shutter are listed on the Microscope Adapters page.
The Lambda 10-3 commands are a superset of the Lambda 10-2, thus integrating all previously available features into the new design. Additional commands are incorporated to access the third wheel as well as the special SmartShutter features. These configurations can be programmed through the keypad making it easy to use the previous shutter commands to access the SmartShutter specific functions such as the neutral density or the 'soft' shutter mode.
Filter selection can be made directly from the keypad or from a computer via the serial, parallel, or USB port. The controller determines the shortest route to the selected filter and an acceleration/deceleration algorithm minimizes vibrations during the movement of the wheel. Internal sensors ensure correct filter positioning and the current filter position is displayed on the front panel. The serial port accepts RS232 level signals through a DB-9 connector. USB input is made through a standard connector and can be directly connected to a PC USB port.
The universal power supply will automatically switch to accommodate the line voltage - no user adjustment is required. An optional liquid light guide is available for applications requiring absolute vibration isolation, and/or spatial illumination uniformity.
GETTING FASTER FILTER SWITCHING TIMES WITH MANY FILTERS INSTALLED
The Sutter filter wheel systems have always been optimized for fast switching of a lightly loaded wheel. When many thick filters are installed, the added mass requires an increase in the time required to switch from one filter to another. Switching times improve significantly with filters made on a thin substrate that do not require a thick layer of additional glass to obtain the desired blocking. Semrock® has the required coating technology to offer filters with substrates down to 2 mm in thickness.
We have taken the additional step of designing a special threaded ring that Semrock can install in place of their typical plain filter cells. Filters mounted in these rings can be threaded directly into the body of our filter wheels when our standard filter cups have been removed. Semrock filters actually weigh less than the filter cup and retaining ring normally used to mount filters in the Sutter wheels. Thus, if you remove our filter cups and mount the new threaded filters directly in the wheel, even a fully loaded wheel will be able to run at speeds that previously could only be used with just 2 filters installed.
The STR Semrock filters are available in both 25 mm and 32 mm versions and should be purchased directly from Semrock. If you are installing these filters in a sutter wheel that has filter cups, you will need to remove the cup from the position you intend to use to mount the threaded filter. When installing the new threaded filters, you will want to use the new wrench designed for this purpose. Contact Sutter for details.
- FEATURES
- As fast as 40 msec between adjacent filters (10 position wheel)
- As fast as 30 msec between adjacent filters (4 position wheel)
- Can control three wheels and two shutters or two wheels and three shutters
- Can accommodate SmartShutter® and Uniblitz® shutter
- 7 speed settings to optimize movement
- Command set compatible with Lambda 10-2
- Automatically detects installed hardware
- Serial, parallel, and USB interfaces
- Can control a variety of 25 mm, 32 mm, and 50 mm wheels
- Chopper drives
- Universal power supply
TECHNICAL SPECIFICATIONS
Dimensions of Control Box
15.75 in x 11 in x 4 in | 40 cm x 28 cm x 10.2 cm
Weight
20 lbs | 11 kg
Electrical
120/240 Volts
50/60 Hertz power line
75 Watts max
RoHS Compliant
Lambda 10-3 CE Certificate
LB10-NW / LB10-NWS / LB10-NWIQ / LB10-W32IQ CE Certificate
US Prices > Lambda 10-3 (Controller)
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.
| Catalog Number | Description | Price |
| LB10-3 | Lambda 10-3 controller, serial and USB cables, power cable and manual | $ 3,011 |
|---|
US Prices > Wheels for Lambda 10-3
| Catalog Number | Description | Price |
| 25 mm Filter Wheels - 10-position | ||
| LB10-NW | 10-position 25 mm filter wheel without shutter | $ 4,580 |
|---|---|---|
| LB10-NWIQ | 10-position 25 mm filter wheel with SmartShutter® | $ 5,507 |
| LB10-NWS | 10-position 25 mm filter wheel with Uniblitz® shutter | $ 5,295 |
| LB10-NWE | 10-position 25 mm filter wheel set up for emission | $ 4,252 |
| 25 mm Filter Wheels - 4-position | ||
| LB10-WHS4 | 4-position 25 mm filter wheel without shutter | $ 4,640 |
|---|---|---|
| LB10-WHS4IQ | 4-position 25 mm filter wheel with SmartShutter® | $ 5,520 |
| LB10-WHS4E | 4-position 25 mm filter wheel set up for emission | $ 4,640 |
| Thin Filter Wheels - 10-position | ||
| LB10-TW1 | 10-position 25 mm thin filter wheel without shutter | $ 4,580 |
|---|---|---|
| LB10-TWIQ1 | 10-position 25 mm thin filter wheel with SmartShutter® | $ 5,507 |
| LB10-TWE1 | 10-position 25 mm thin filter wheel set up for emission | $ 4,252 |
| 25 mm Dual Filter Wheels | ||
| LB10-WD | Back to back mounting of two 25 mm filter wheels - no drop-in filter holders | $ 6,901 |
|---|---|---|
| LB10-WDIQ | Back to back mounting of two 25 mm filter wheels with one SmartShutter® and one slide-in filter holder | $ 7,953 |
| LB10-WDS | Back to back mounting of two 25 mm filter wheels with one Uniblitz® shutter and one slide-in filter holder | $ 7,836 |
| 32 mm Filter Wheels - 10-position | ||
| LB10-W32 | 10-position 32 mm filter wheel without shutter | $ 4,884 |
|---|---|---|
| LB10-W32IQ | 10-position 32 mm filter wheel with SmartShutter® | $ 5,650 |
| LB10-W32S | 10-position 32 mm filter wheel Uniblitz® shutter | $ 5,230 |
| LB10-TW321 | 10-position 32 mm filter wheel without shutter | $ 4,880 |
| LB10-W32-Y732 | 32 mm emission wheel for Olympus IX73/83 | $ 5,083 |
| 50mm Filter Wheel - 5-position | ||
| LB10-W50 | 5-position 50mm filter wheel without shutter | $ 4,580 |
|---|---|---|
| Specialty Wheels | ||
| LB10-W12 | 10-position 12.5 mm filter wheel without shutter | $ 4,347 |
|---|---|---|
| LB4-W | Belt drive 4-position 25 mm filter wheel without shutter | $ 3,968 |
| LB10-NWE-N29B | 10-position 25 mm emission for bottom port of Nikon Ti | $ 4,916 |
| LB10-NWE-Z403 | 10-position 25 mm emission for Zeiss Axio Observer | $ 5,144 |
| LB5-W32E-Y73 | 5-position 32 mm wheel for Olympus IX73/80 | $ 4,252 |
| LB5-W32E-N31 | 5-position 32 mm wheel for Nikon Ti2 | $ 4,252 |
| LB6-W32E-Y73 | 6-position 32 mm wheel for Olympus IX73/80 | $ 4,252 |
| LB6-W32E-N31 | 6-position 32 mm wheel for Nikon Ti2 | $ 4,252 |
1 Must be used wtih Semrock filters that have Sutter threaded ring.
2 Includes emission adapter
3 LEFT PORT ONLY
US Prices > SmartShutter®
| Catalog Number | Description | Price |
| IQ12-SA | 12.5 mm SmartShutter® with stand-alone housing | $ 1,296 |
|---|---|---|
| IQ12-AN | 12.5 mm hard anodized SmartShutter® | $ 1,405 |
| IQ25-SA1 | 25 mm SmartShutter® with stand-alone housing | $ 1,367 |
| IQ25-W2 | 25 mm SmartShutter® with housing to fit filter wheel | $ 1,367 |
| IQ25-WU | 25 mm SmartShutter® to retrofit non-shuttered filter wheel | $ 1,422 |
| IQ25-LS | 25 mm SmartShutter® with housing to fit Lambda LS | $ 1,978 |
| IQ25-DG | 25 mm SmartShutter® with housing to fit Lambda DG-4/DG-5 | $ 1,834 |
| IQ35-W | 35 mm SmartShutter® with housing to fit filter wheel | $ 1,925 |
| IQ35-SA | 35 mm SmartShutter® with stand-alone housing | $ 1,925 |
| IQ50-SA | 50 mm SmartShutter® with stand-alone housing | $ 1,925 |
1 Where vignetting may be an issue, we recommend the 35 mm shutter
2 For upgrading a 25 mm filter wheel with existing Uniblitz® shutter to SmartShutter®
3 Compatible with Lambda SC controller
Mounting adapters for Nikon, Zeiss, Leica and Olympus microscopes are available. Please see the Microscope Adapters page or contact Sutter Instrument for pricing and further information
US Prices > Accessories
| Catalog Number | Description | Price |
| FSWITCH | Foot switch with BNC connector - Changes state of shutter with foot press as long as foot press is maintained | $ 120 |
|---|---|---|
| FSTOGGLE | Foot switch with BNC connector - alternates open/close with each foot press | $ 120 |
| CIQ-2 | 25 pin connector to two 9 pin connectors (Allows connection of one stand-alone SmartShutter®) | $ 120 |
| SLIDE-IN3 | Slide-in filter holder for 25 mm wheel | $ 93 |
| DROP-IN4 | Drop-in filter holder for 25 mm wheel | $ 93 |
| DROP-IN/32 | Drop-in filter holder for LB10-W32IQ | $ 93 |
| X100120 | 25 mm filter cup | $ 33 |
| X1001455 | 25 mm angled filter spacer | $ 30 |
| X100150 | 25 mm spacer | $ 24 |
| X100160 | 25 mm retaining ring | $ 26 |
| X100122 | 32 mm filter cup | $ 30 |
| X100152 | 32 mm spacer | $ 24 |
| X100162 | 32 mm retaining ring | $ 24 |
| X100124 | 50 mm filter cup | $ 30 |
| X100126 | 50 mm short filter cup | $ 26 |
| X100154 | 50 mm spacer | $ 26 |
| X100164 | 50 mm retaining ring | $ 26 |
| LLG | Liquid light guide (2 meters, 3mm dia), C-mount, lens and lens tube | $ 1,789 |
| SHUTTER | 25 mm replacement Uniblitz shutter (not an upgrade) | $ 811 |
| W620005 | 9 pin male/female serial cable | $ 40 |
| W620007 | 15 pin shielded cable for standard filter wheel | $ 40 |
| W620009 | 25 pin cable for wheels with SmartShutter | $ 40 |
| W621520 | USB cable | $ 40 |
| X100111 | 35 mm replacement Uniblitz shutter (not an upgrade) | $ 2,110 |
| X100208 | 8 inch guide rod for stand (each) | $ 63 |
| X100210 | 12 inch guide rod for stand (each) | $ 68 |
| X100212 | 22 inch guide rod for stand (each) | $ 80 |
| X100560 | 25 mm spanner wrench | $ 190 |
| X100555 | 25 mm thin wheel spanner wrench | $ 46 |
| X100565 | 32 mm spanner wrench | $ 46 |
| X100558 | 32 mm thin wheel spanner wrench | $ 46 |
| X100567 | 50 mm spanner wrench | $ 46 |
3 Slide-in filter holders are for wheels with shutter
4 Drop-in filter holders are for wheels without shutter
5 Two spacers are required for each filter position
