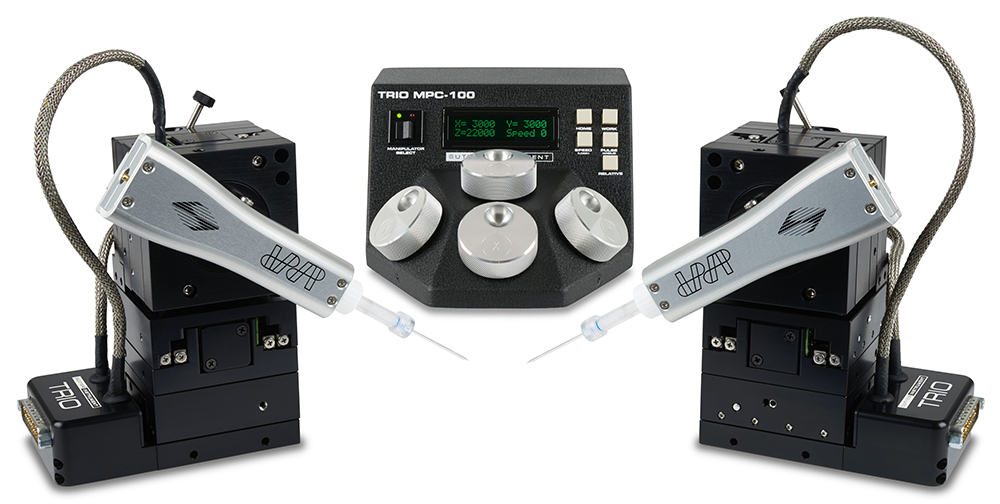

Shown: TRIO MPC-145-2 with Sutter dPatch® headstage (not included)
TRIO™ MPC-145 System
3-axis / 0-90 Diagonal Micromanipulator System
The MPC-145 System consists of the MPC-100 controller and an MP-845 micromanipulator.
The new MP-845 micromanipulator features construction based on the lead screw design of the TRIO-245, but with the addition of precision cross-roller bearings for even tighter tolerances. A 25 pin connector insures future compatibility with our other controllers. Available in aluminum or stainless steel (see Stainless MP-845 tab above) the MP-845 is a highly stable 3-axis manipulator with 25 mm of travel on each axis. The TRIO MPC-100 controller gives the MP-845 a synthetic 4th axis that can be set in software to any angle between 0 and 90 degrees for diagonal movement. Based on a lead-screw design with a smaller overall size and footprint than most manipulators, the MP-845 is ideal for applications that require 2 pipettes in one setup or for setups where space is limited.
The compact design of the integrated Rotary Optical Encoder (ROE) controller requires minimal bench space; provides quiet, fan-free operation; and is easy to use. No rack mounted controller is required. Position coordinates, in relative or absolute values, are displayed directly on the ROE. The TRIO MPC-100 uses a logarithmic acceleration algorithm that eliminates the need for speed selection. As the knobs on the ROE are turned faster, acceleration ramps up. This allows for smooth and intuitive motion control of electrode position without the need to stop and change speeds or lift your hand from the controller. When not moving, the motors are powered down, reducing electrical noise in the system to unmeasurable levels which keeps the motors cool to eliminate thermal drift.
Five conveniently located buttons control all the functions you will need in normal operation. Press and hold the [WORK] button to quickly store a work position; pressing [WORK] after this will return the manipulator to the same location. [HOME] sends the manipulator to a second position, often set for a point furthest from the microscope, which is useful for rapid pipette exchange. Pressing [SPEED] allows the selection of one of 4 speed ranges. With practice, there is no need to ever change speeds, however, we have included three low speed ranges for those who work at very high magnification. Holding [SPEED] for three-seconds will lock the knobs out, to prevent accidental movement. Display coordinates can toggle between relative and absolute by pressing the [RELATIVE] button; holding the button down will zero the relative coordinates. Finally, [PULSE] activates a pulse movement mode that produces small, rapid bursts of motion that can be advantageous for cell penetration with sharp electrodes. Hold [PULSE] for three-seconds to set or modify the 4th axis angle between 0 and 90 degrees.
Designed with maximum flexibility in mind, a DIP switch on the controller changes the directional movement of the ROE knobs to accommodate the preference of the user. A Y-axis lockout function (accessible by DIP switch) is also available, allowing X/Z-only axial movement during HOME and WORK repositioning. The TRIO comes standard with a universal mounting system suitable for the most popular headstages or pipette holders.
-
FEATURES: TRIO MPC-100 Controller
- Controls one or two manipulators
- Sub-micron (less than 100 nm) resolution
- User selectable angle from 0 - 90 degrees via ROE input
- Fast movement with a top speed of 3 mm/sec (while homing)
- Compact, fanless, user-friendly ROE controller preserves bench and rack space
- Push button control of multiple functions - WORK, HOME, LOCK, PULSE and RELATIVE
- DIP switches on ROE select direction of movement produced by turn of ROE knob
- USB interface for computer control
-
FEATURES: MP-845 Mechanical
- Now also available in thermally stable stainless steel (See tab above)
- Mechanically robust construction for high stability
- Precision cross-roller bearings
- Three independent axes - 25 mm orthogonal travel in X, Y and Z
- Carries up to a kilogram
- Suited for in vitro and in vivo electrophysiological recording
- Universal mounting system for headstage or pipette holder

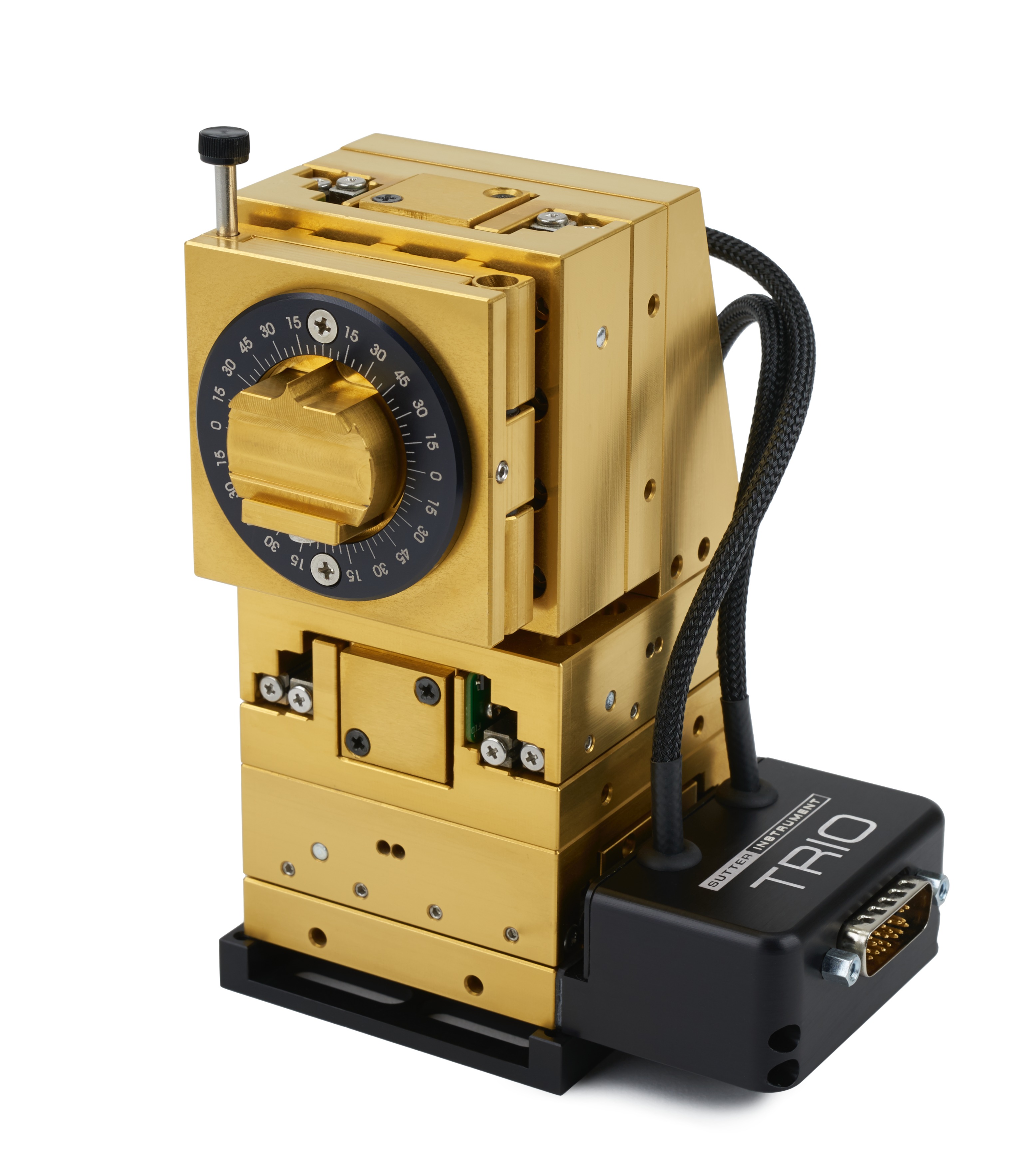

The MP-845 manipulator is now also available in stainless steel! The standard version of the MP-845 has virtually no drift in its motor and bearing assemblies. The last remaining hurdle is that of thermal drift caused by the expansion and contraction of the aluminum body of the manipulator. By utilizing a stainless steel with very low coefficient of expansion, the MP-845S is simply the lowest drift manipulator available on the market. The added mass of the stainless steel body has the additional benefit of dampening out vibration, giving the stainless MP-845S the silkiest movement of any manipulator.
Because low expansion stainless steels do have some ferric content, the stainless MP-845S is PVD coated in titanium nitride, giving it its distinctive gold color. This coating will ensure that the stainless MP-845S will resist corrosion caused by exposure to salt solutions in a lab environment.
TECHNICAL SPECIFICATIONS
Travel
MP-845 / MP-845S: 25 mm on X, Y and Z axes
Long Term Stability
Aluminum
< 1.0 micron in 4 hours
Stainless Steel
< 0.5 micron in 24 hours
TRIO MPC-100 Control Box
6.25 in x 8 in x 5.9 in | 15.9 cm x 20.3 cm x 10.2 cm
Manipulator Weight
MP-845 (aluminum)
3.5 lbs | 1.6 kg
MP-845S (stainless steel)
7.7 lbs | 3.5 kg
TRIO MPC-100 Controller
2.3 lbs | 1.04 kg
Electrical
115/230 Volts
50/60 Hertz power line
US Prices > TRIO MPC-145 Systems
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.
| Catalog Number | Description | Price |
| ALUMINUM | ||
| MPC-145 | One MP-845 manipulator mechanical, one TRIO MPC-100 controller, mounting adapter plate, rod holder, hinged headstage mount, 4 inch dovetail extension, manipulator connecting cable, power cord and manual (please specify right- or left-handed) | $ 10,895 |
| MPC-145-2 | Two MP-845 mechanicals with TRIO MPC-100 controller, mounting adapter plates, rod holders, hinged headstage mounts, 4 inch dovetail extensions, manipulator connecting cables, power cord and manual (please specify right- or left-handed) | $ 17,698 |
| MP-845-M | MP-845 manipulator mechanical alone - Includes mounting adapter plate, rod holder, hinged headstage mount, 4 inch dovetail extension, manipulator connecting cable (please specify right- or left-handed) | $ 7,332 |
| STAINLESS STEEL | ||
| MPC-145S | One MP-845S manipulator mechanical in stainless steel, with one TRIO MPC-100 controller, mounting adapter plate, rod holder, hinged headstage mount, 4 inch dovetail extension, manipulator connecting cables, power cord and manual (please specify right- or left-handed) | $ 13,486 |
| MPC-145S-2 | Two MP-845S manipulator mechanicals in stainless steel with one TRIO MPC-100 controller, mounting adapter plates, rod holders, hinged headstage mounts, 4 inch dovetail extensions, manipulator connecting cables, power cord and manual (please specify right- or left-handed) | $ 21,735 |
| MP-845-S-M | MP-845 stainless steel manipulator mechanical alone - Includes mounting adapter plate, rod holder, hinged headstage mount, 4 inch dovetail extension, manipulator connecting cable (please specify right- or left-handed) | $ 9,993 |
| ACCESSORIES | Catalog Number | Description | Price |
|---|---|---|
| 285204 | 4 in dovetail extension | $ 82 |
| 2652101 | Mounting adapter plate | $ 86 |
| 225RBI | Rotating base | $ 930 |
| 221165 | Z-axis vertical extension | $ 129 |
| BR-AW | Rod clamp for XenoWorks injectors (for rod OD 2-4mm) | $ 125 |
| BR-AW-L | Long rod clamp for XenoWorks injectors (for rod OD 2-4mm) | $ 147 |
| MP-RISER-0.52 | 1/2 inch riser | $ 165 |
| MP-RISER-1.02 | 1 inch riser | $ 226 |
| MP-CLIP3 | Rod holder (for rod OD 6.25 mm or larger) | $ 125 |
| MP-ROD | Rod holder (for rod OD 6.25 mm or larger) | $ 125 |
| EHOLDER | Micropipette holder - 1.0-1.5 mm glass | $ 147 |
1 For use with MT and MD series stands and platforms, or any surface with 1 inch or 25 mm centered holes
2 Risers can be combined to achieve desired height.
3 Suitable for multielectrode probes.
For detailed information on mounting our micromanipulators, refer to the Mounting Systems section or phone for assistance.
US Prices > TRIO Bundled Systems
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.
BUNDLED SYSTEMS
Microscope Models - Please add scope suffix when ordering.
Z25 - Zeiss Axioskop 2 FS
Z45 - Zeiss Axio Examiner
N65 - Nikon FN1
L30 - Leica DMLFS
L35 - Leica DM6000FS
Y51 - Olympus BX51WI
Y51-FD - Olympus BX51WI (includes focus drive add $1,900 to price)
Y53 - Olympus BX53/63
SAN FRANCISCO
MANUAL - MT-1000 with manual X-Y translator, micromanipulators
Includes 2 motorized TRIO micromanipulators, one MPC-100 controller, one MT-500 manual X-Y translator, one MT-150 chamber column, two micromanipulator stands (without linear slide)
| Catalog Number | Description | Price |
| 1000-TRIO-(scope suffix) | MT-1000 with TRIO MPC-145-2 system | $ 24,589 |
|---|---|---|
| 1000-TRIO-S-(scope suffix) | MT-1000 with TRIO MPC-145S-2 stainless steel | $ 31,633 |
MOTORIZED - MT-2800 with motorized X-Y translator, micromanipulators
Includes TRIO MPC-145-2 system with 2 motorized micromanipulators, an MT-800 motorized X-Y translator, BOB controller, one MT-150 chamber column, two micromanipulator stands (without linear slide)
| Catalog Number | Description | Price |
| 2800-TRIO-(scope suffix) | MT-2800 with TRIO MPC-145-2 system | $ 29,215 |
|---|---|---|
| 2800-TRIO-S-(scope suffix) | MT-2800 with TRIO MPC-145S-2 stainless steel | $ 36,260 |
ALCATRAZ
MANUAL - MT-1078 TRIO manual X-Y translator, micromanipulators
Includes motorized TRIO micromanipulators, one MPC-100 controller, the MT-500 manual X-Y translator, one MT-78-FS fixed stage platform and insert
| Catalog Number | Description | Price |
| 1078-TRIO-(scope suffix) | MT-1078 with TRIO MPC-145-2 | $ 25,871 |
|---|---|---|
| 1078-TRIO-S-(scope suffix) | MT-1078 with TRIO MPC-145S-2 stainless steel | $ 32,915 |
MOTORIZED - MT-2878 with motorized X-Y translator, micromanipulators
Includes TRIO MPC-145-2 system with 2 motorized micromanipulators, the MT-800 motorized X-Y translator and ROE controller, one MT-78-FS fixed stage platform and insert
| Catalog Number | Description | Price |
| 2878-TRIO-(scope suffix) | MT-2878 with TRIO MPC-145-2 | $ 28,204 |
|---|---|---|
| 2878-TRIO-S-(scope suffix) | MT-2878 with TRIO MPC-145S-2 stainless steel | $ 35,248 |
