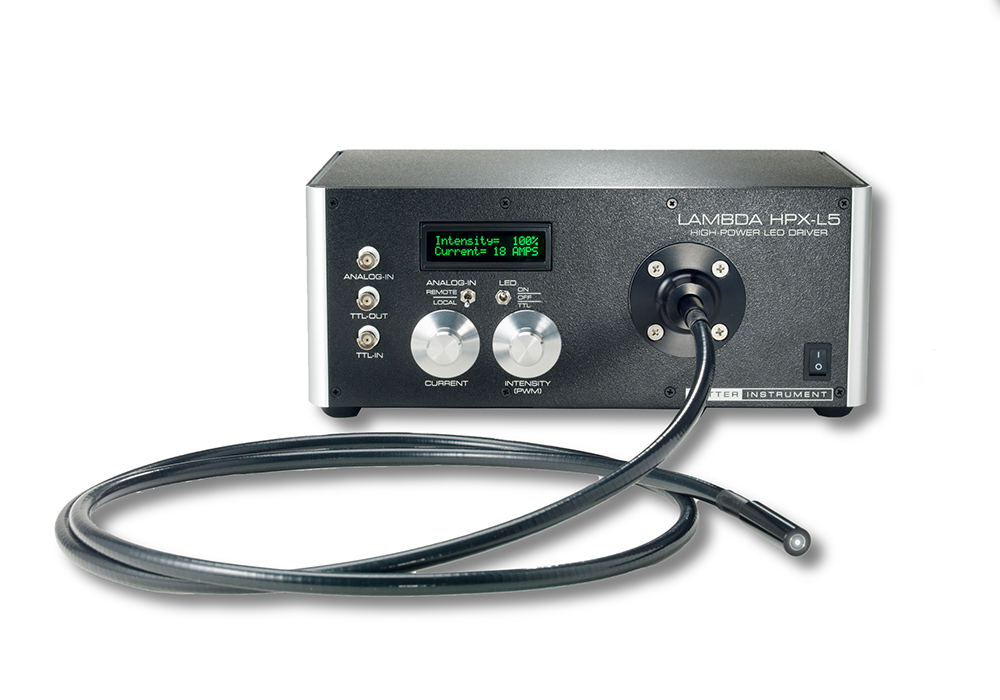

Lambda HPX-L5
High Power LED Light Source with Liquid Lightguide
The Lambda HPX-L5 was created as a liquid light guide coupled version of the HPX, our newest high power LED light source. The liquid light guide allows for LED cooling via an internal heatsink with a whisper fan. This requires less maintenance than the liquid-cooled direct mount version. Designed around a single 90W 3 mm LED die, the Lambda HPX-L5 provides light output comparable to a 150W xenon arc lamp when using the same light guide. The Lambda HPX-L5 is optimized for coupling to an optional 5 mm liquid light guide, and off-the-shelf microscope adapter. The HPX is expected to retain 70% of it's original light output after 60,000 hours.
Because LEDs exhibit color shift with current change, the Lambda HPX was designed to dim the LED using either PWM or current control. PWM will be preferable for most applications, and allows the LED to run cooler. PWM switching is at 28 kHz, high enough for use with most high speed cameras. For those with applications intolerant of any pulsed output, dimming via current control is also available. PWM and Current information are conveniently displayed on the front panel display, and are manually selectable via control knobs. Integral shuttering time is 10 microseconds to turn on and off. TTL input and output allows for triggering from either software or directly from another device such as a camera or digital IO board. PWM can also be controlled externally via analog input. Active temperature monitoring insures that the LED life will be maximized.
Light output is in the visible spectrum from 430 nm - 700 nm. Special order units are available with 630 nm, 530 nm, 460 nm, and 405 nm wavelength specific LEDs. The Lambda HPX-L5 can also be combined with our FLED to create a two-channel system with any combination of wavelengths.
-
FEATURES
- Vibration-free coupling via liquid light guide
- Dimming via PWM or Current control
- Lifetime > 50,000 hours
- Front mounted connectors for ease of access
- TTL and Analog controls
- Integral Shuttering
- White light and UV combination available
-
COMMON APPLICATIONS
- Fluorescent microscopy
- Optogenetics
TECHNICAL SPECIFICATIONS
Output Range
White light (430 nm - 700 nm)
Shuttering
Turn on time: 10 µs
Turn off time: 10 µs
Noise/Short term stability
0.02%
LED Life
60,000 hours
PWM Frequency
28 kHz
Input / Output
TTL & Analog
Standard White LEDs
Cool White only (see spectra)
Optional LEDs
630 nm, 530 nm, 460 nm, and 405 nm
Dimming
PWM or Current control
Dimensions
Control Box
12.25 in W x 9 in D x 5.25 in H | 311 mm W x 229 mm D x 133 mm H
Weight
8.8 lbs | 4 kg
Electrical
120/240 Volts
50/60 Hertz power line
150 Watts max
US Prices > Lambda HPX-L5
International prices vary by country. Please contact your local distributor or Sutter Instrument for a quotation. Prices subject to change without notice.
LAMBDA-HPX-L5 - Includes the Lambda HPX-L5 LED light source, liquid light guide and power cables.
| Catalog Number | Description | Price |
| HPX-L5 1 | Lambda HPX-L5 High owered LED light source | $6,806 |
|---|---|---|
| Please select one wavelength when ordering | ||
| WC-HPX-L5 | LED, Cool White |
| 460-HPX-L5 | LED, 460 nm |
| 530-HPX-L5 | LED, 530 nm |
| 630-HPX-L5 | LED, 630 nm |
LAMBDA-HPX-L5UV - Includes the Lambda HPX-L5UV LED light source, liquid light guide and power cables.
| Catalog Number | Description | Price |
| HPX-L5UV 1 | Lambda HPX-L5UV LED light source | $7,682 |
|---|
Available Wavelength
| 405-HPX-L5 | LED, 405 nm |
LAMBDA-HPX-L5DC* - Includes the Lambda HPX-L5 LED light source with cool white LED, Lambda FLED with UV LED, liquid light guide, and cables.
| Catalog Number | Description | Price |
| HPX-L5DC-Y 1 | Lambda HPX-L5 and FLED for Olympus | $ 10,420 |
|---|---|---|
| HPX-L5DC-N 1 | Lambda HPX-L5 and FLED for Nikon | $ 10,420 |
| HPX-L5DC-Z 1 | Lambda HPX-L5 and FLED for Zeiss | $ 10,420 |
| HPX-L5DC-L 1 | Lambda HPX-L5 and FLED for Leica | $ 10,420 |
* Suitable for additional DAPI channel
1 You will need a mounting adapter for your microscope
| ACCESSORIES | ||
| Catalog Number | Description | Price |
| O777648 | Replacement Liquid light guide (2 meters, 5mm diameter) | $ 786 |
|---|---|---|
| TRIGGER2 | USB trigger box | $ 631 |
2 Compatible with Micro-Manager software
Mounting adapters for Nikon, Zeiss, Leica and Olympus microscopes are available. Please see the Microscope Adapters list.
RELATED PRODUCTS
Lambda 10-2
Lambda 10-3
Lambda VF-5 / VF1
TECHNICAL INFORMATION

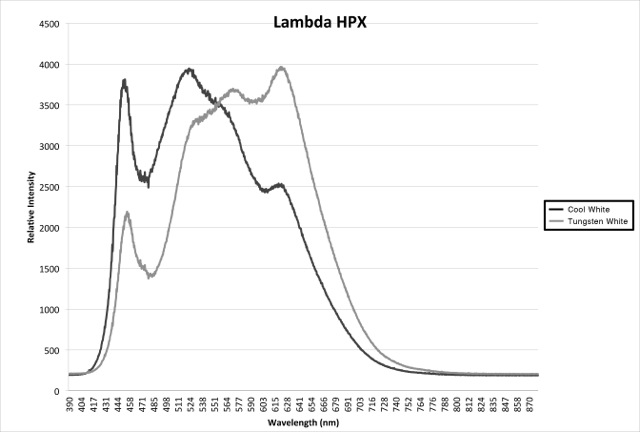

Spectral output of cool white and "Tungsten" white LEDs
